Storebro J34/S34


Storebro J34

Technical Data

Production period1999-2000
L.o.a. [m]10.33
Beam [m]3.44
Draft [m]0.60
Height above waterline [m]2.51 - with hood
2.29 - without hood
Freeboard front [m]1.28
Displacement [t]6.05
Fuel [l]660
Water [l]145
Holding tank [l]75
Voltage [V]12
HullGRP
Number of boats11 - J34
1 - S34
DesignerGerman Frers

Quick links

linkRemarks
linkPhotos and images
linkEngines
linkStatistics
linkTechnical development
linkBrochures, flyer
linkManufacturing number list (12)

Remarks

The J34/S34 was the 20 cm streched Version of the J32/S32, which had been introduced two years earlier. This was first time that the Argentin German Frers designed a boat for Storebro. He drew a boat that should remind us of the historical lines of Solö built in 1951.

The major change to the J32 was that the entire seat could be lifted for better access to the engine compartment. In addition, the J34 had a complete cover for the folded aft canvas.

Hull
The development of the hull incorporated the experience gained from the construction of the SRC 90E. The keel area of the hull was reinforced in such a way that it is possible to go directly to the beach with the ship. An option that was sufficiently addressed in the promotional videos.
Another innovation was the option to order the hull in different colors ex shipyard. The most popular color was blue followed by yellow. But a white and a green ship were also produced.

Interior
The shipyard also showed flexibility in the interior design. For example, it could be ordered in lighter birch instead of the familiar darker mahogany wood.

Engines
Also new were the forms of propulsion of the ship. While during the last few years Storebro focused mainly on the drive shaft, now the customer could choose between a jet drive (J34) and the stern-drive (S34).
For the J32 there were only engines from Yanmar available. The only built S34 was equipped with Volvo Penta KAD44.

2021-03-14 2021-03-14

Photos and images

J34/S34: image 1 of 2 thumb J34/S34: image 1 of 2 thumb J34/S34: image 2 of 2 thumb J34/S34: image 2 of 2 thumb J34/S34: image 2 of 2 thumb J34/S34: image 1 of 2 thumb J34/S34: image 1 of 2 thumb J34/S34: image 1 of 2 thumb
Pictures interior / technic
J34/S34: image 1 of 2 thumb J34/S34: image 1 of 2 thumb J34/S34: image 1 of 2 thumb J34/S34: image 1 of 2 thumb J34/S34: image 2 of 2 thumb
In some cases, further images of registered ships are available for registered users.
Unless otherwise stated, the images used on this page are subject to copyright. Commercial use without written consent is not permitted. The only exceptions to this copyright are the images provided by the owners of their ships. In this case, the copyright belongs to the respective owners.

Engines

EnginesVolvo Penta
KAD44P
Yanmar
6LP-STE
Production1997-2000 *1997-2001
FuelDieselDiesel
Stroke44
No. of cylinders66
Bore[mm]92.0094.00
Stroke[mm]90100
Compression ratio16.5:1
Displacement[l]3.604.16
Torque[Nm]
Engine output[kw/(HP)]182/(248) ***188 - 221/
(255 - 300) ***
Rotations[1/min]39003600-3800
Weight[kg]572
*** Power to the shaft
EnginesEngine output
[kw/(HP)]
Volvo Penta KAD44P182/(248) ***
Yanmar 6LP-STE188 - 221/
(255 - 300) ***
* All variants of this engine
*** Power at the propeller shaft

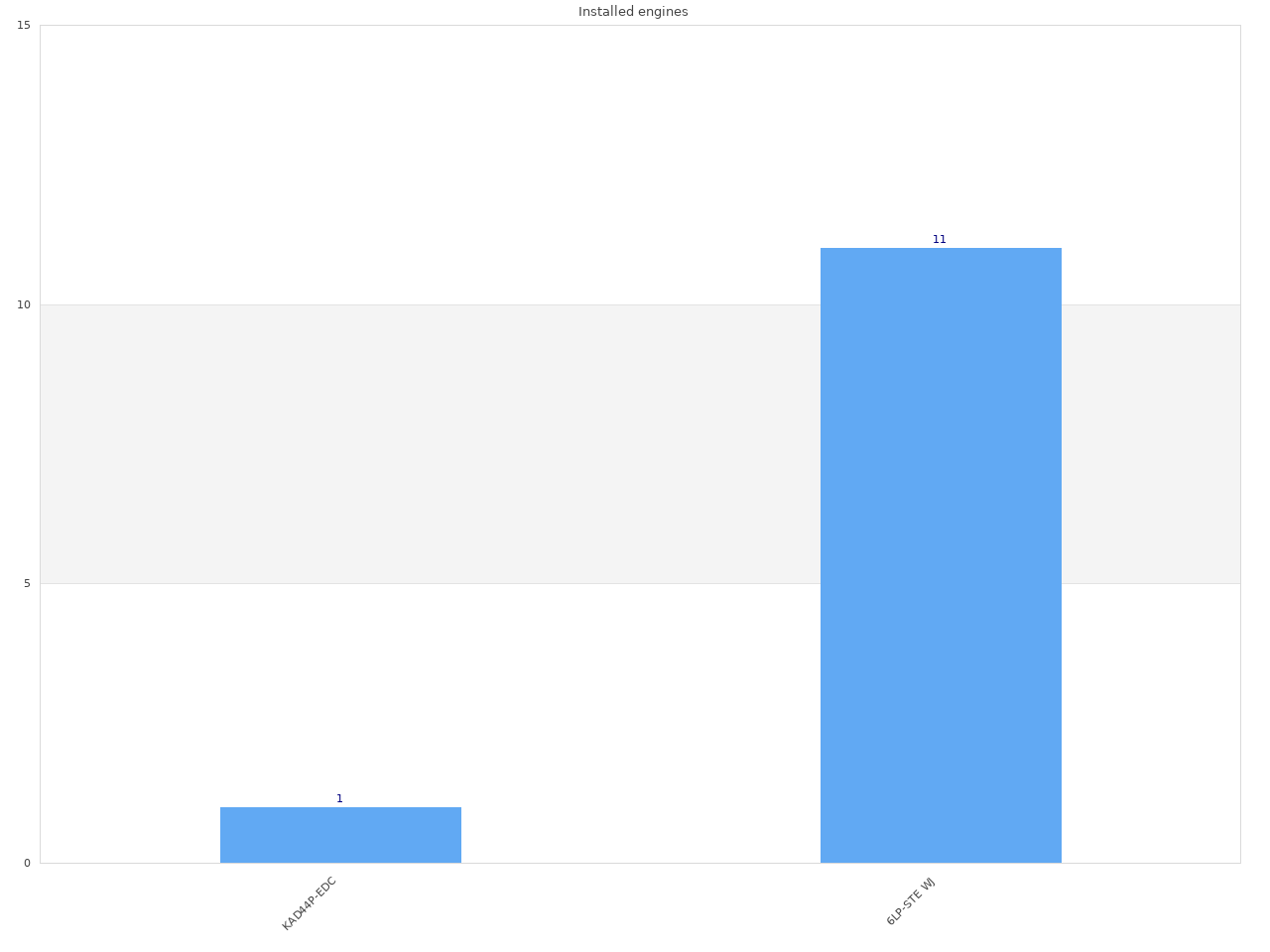

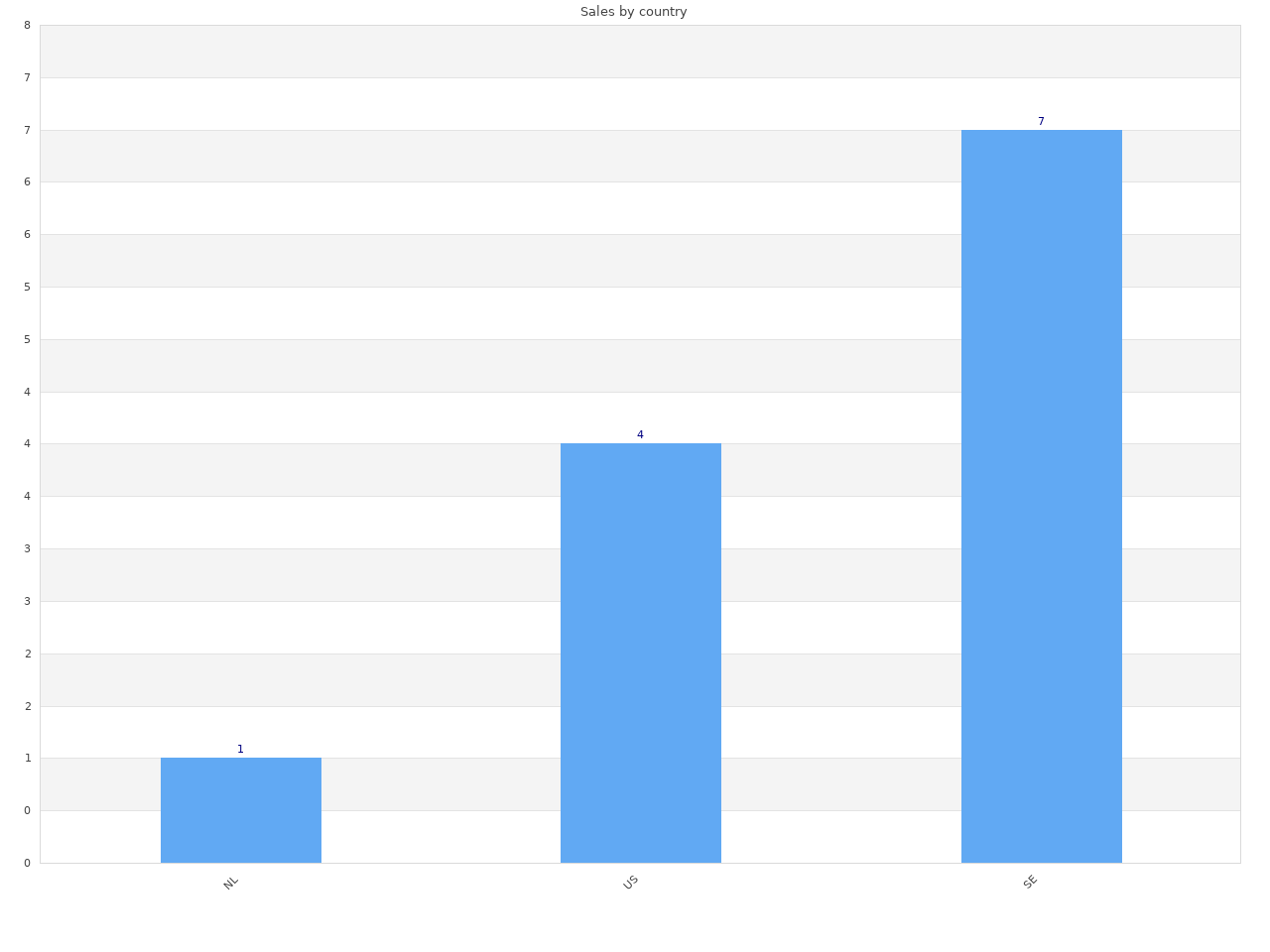

Statistics

j34: image 1 of 1 thumb
j34: image 1 of 1 thumb
As a registered user, you have access to further diagrams on hull colours, layout variants, type of wood used and production figures per year, depending on the type of boat.

Technical development

As a registered user, you have access to the list of changes in production, depending on the type of boat.
