King's Cruiser


Technical Data

Production period1957-1965
L.o.a. [m]8.54
Beam [m]2.22
Draft [m]1.20
Displacement [t]2.30
Ballast weight [t]0.98
Fuel [l]12
Water [l]50
HullMahogany
Main sail [m2]19.60
Jib [m2]8.40
Genoa [m2]16.30
Spinnaker [m2]31.00
Number of boatsca. 200
DesignerTord Sundén

Quick links

linkRemarks
linkPhotos and images
linkEngines
linkStatistics
linkBrochures, flyer
linkManufacturing number list (207)

Remarks

The King's Cruiser is the first sailing boat built by Örnmaskiner. The model was built as a commission for G. Andersson or AB Telfa in Gothenburg, who also owned the name and plans. The ship was drawn by Tord Sundén.

Before the Örnmaskiner company started production of the King's Cruisers, they were also built by Harry Hallberg on Orust. Whether a ship was built by Hallberg or by Örnmaskiner can be identified by the direct production number (see "Miscellaneous").

AB Telfa sold the ships worldwide. Most of the ships were sold to the USA, but also to Italy.

Kungskryssaren: image 1 of 1 thumb
Serial number badge
of a King´s Cruiser
(here number 240,
Örmaskiner No. 162)
As the partner companies were planning a change to GRP hulls, which Ivar Gustafsson rejected, the cooperation was discontinued. The shipyard developed the Örnen series instead.

Miscellaneous
The King´s Cruisers received their own serial numbers from AB Telfa, which did not correspond to the serial numbers assigned by Örnmaskiner. However, in some cases the numbers of the ships can still be determined, as at times both numbers were noted in the delivery lists. The numbers assigned by the shipyard range from 1 to a maximum of 271. The numbers assigned by AB Telfa range from a minimum of 14 (lower is not documented) to a maximum of 337 (higher is not documented).

Like the Svanö/Bergö, the King´s Cruiser was delivered in many bright hull colours. These included the shades of green, blue, turquoise, red and cream white.

2022-05-02 2022-05-08

Photos and images

Kungskryssaren: image 1 of 1 thumb Kungskryssaren: image 1 of 1 thumb Kungskryssaren: image 1 of 1 thumb Kungskryssaren: image 1 of 1 thumb
Kungskryssaren: image 1 of 1 thumb
Photos during production
Kungskryssaren: image 1 of 10 thumb Kungskryssaren: image 1 of 10 thumb Kungskryssaren: image 1 of 1 thumb Kungskryssaren: image 1 of 10 thumb Kungskryssaren: image 1 of 1 thumb
In some cases, further images of registered ships are available for registered users.
Unless otherwise stated, the images used on this page are subject to copyright. Commercial use without written consent is not permitted. The only exceptions to this copyright are the images provided by the owners of their ships. In this case, the copyright belongs to the respective owners.

Engines

EnginesVolvo Penta
F12
Volvo Penta
MD1
Production1952-19581958-1970
FuelPetrol/GasolineDiesel
Stroke24
No. of cylinders11
Bore[mm]92.0779.37
Stroke[mm]9090
Compression ratio5.2:118.0:1
Displacement[l]0.670.45
Torque[Nm]
Engine output[kw/(HP)]4/(6)4 - 5/
(5 - 7)
Rotations[1/min]13502000-2300
Weight[kg]130
EnginesEngine output
[kw/(HP)]
Volvo Penta F124/(6)
Volvo Penta MD14 - 5/
(5 - 7)

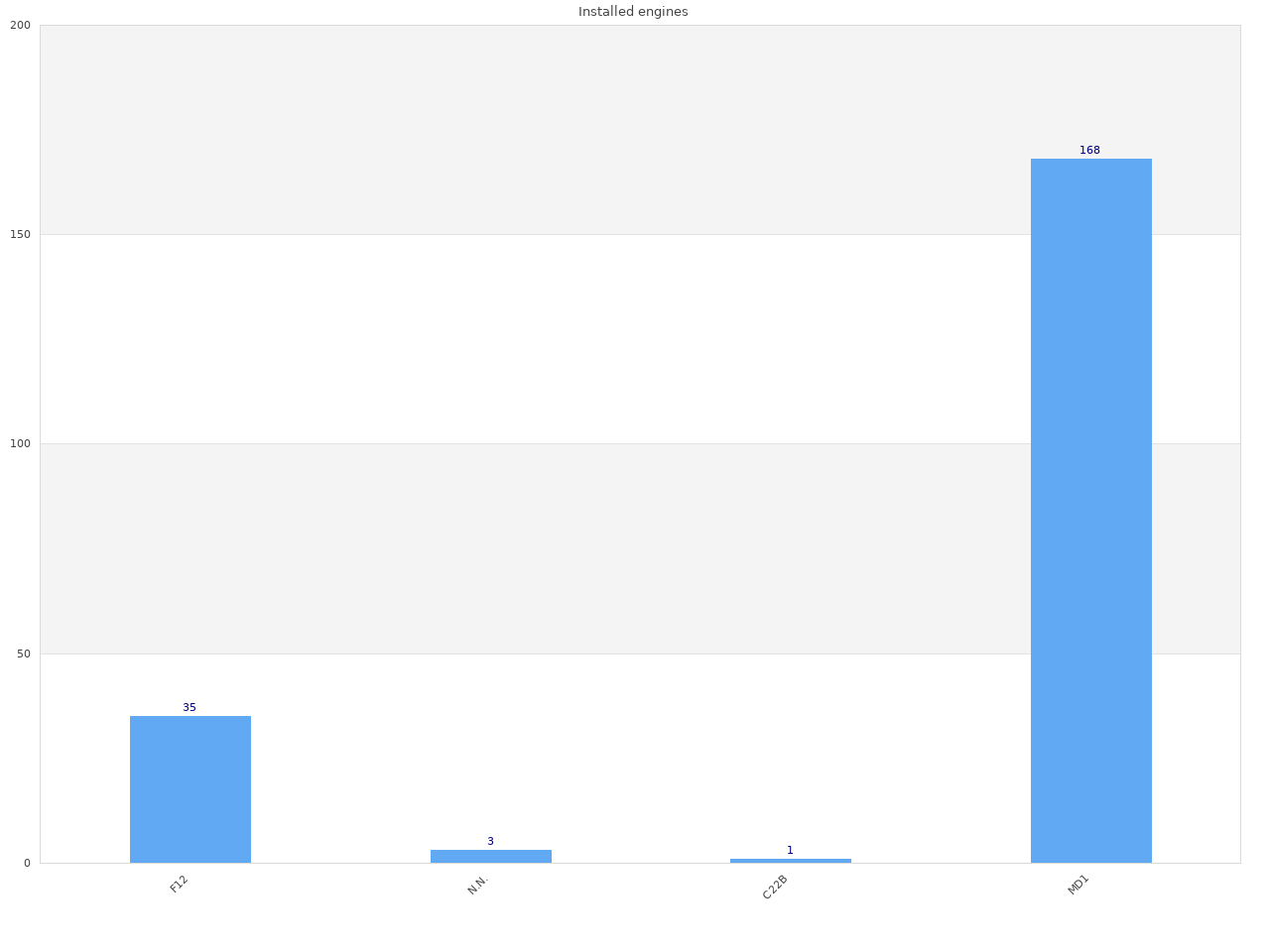

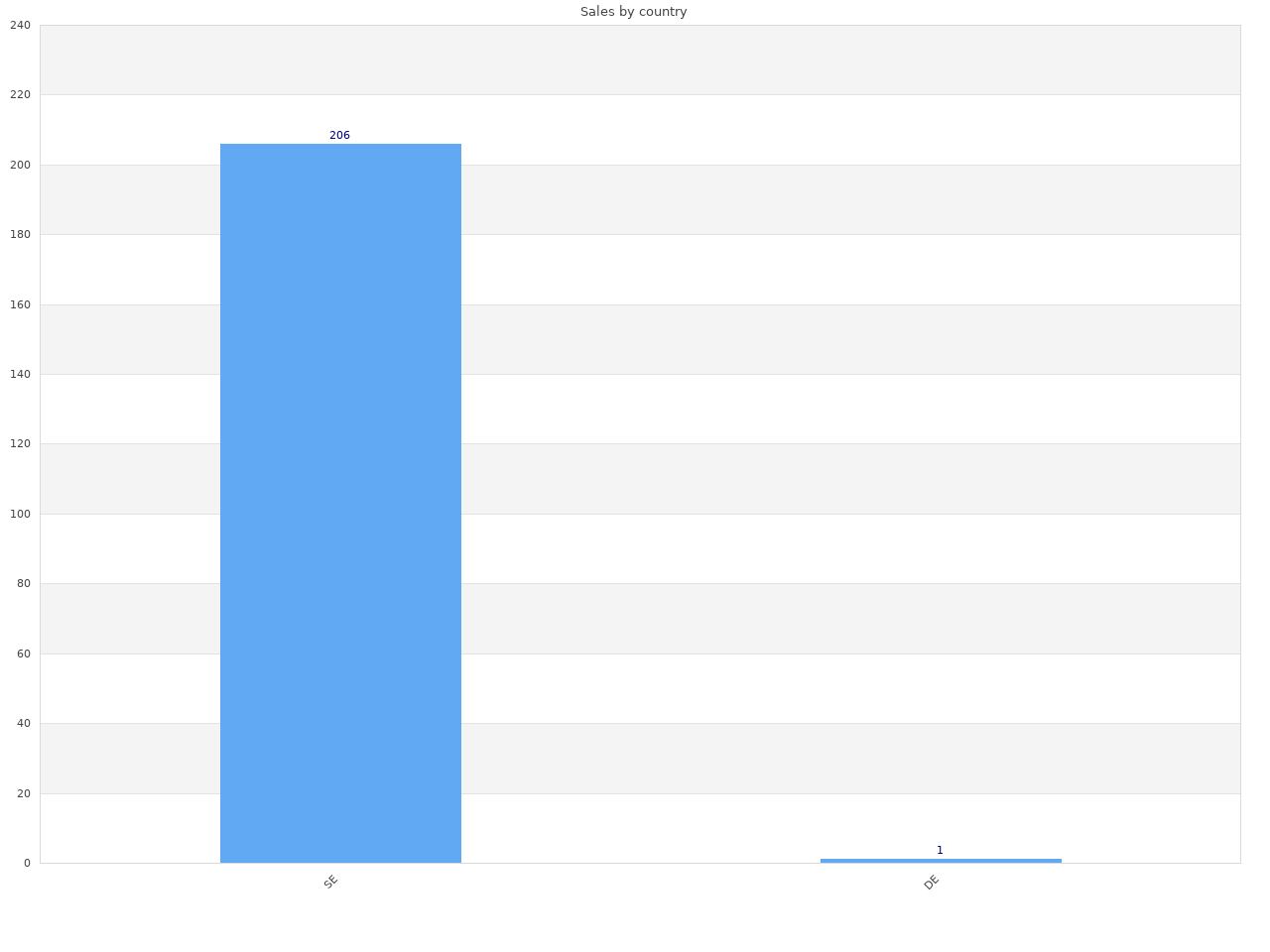

Statistics

kungskryssaren: image 1 of 1 thumb
kungskryssaren: image 1 of 1 thumb
As a registered user, you have access to further diagrams on hull colours, layout variants, type of wood used and production figures per year, depending on the type of boat.

Documents

Brochures, flyerLowHi
AB Telfa - Kingscruiser - Flyer 1957enAB Telfa - Kingscruiser
AB Telfa - Kingscruiser - Brochure 1962seAB Telfa - Kingscruiser
Technical brochuresLowHi
Volvo Penta - Program 1954en
Volvo Penta - Program 1959se
Volvo Penta - Program 1960se
Volvo Penta - Program 1970en
Volvo Penta MD1 - Productflyeren
Legend:
pdf pdf grey pdf grey register pdf grey register pdf srcc

PDF-file available for download

PDF-file not available for download

PDF-file only available for registered users

PDF-file only available for registered owners

PDF-file only available for SRCC members
