Storebro Grand Series No. 1


Technical Data

Production period2000-2002
L.o.a. [m]18.90
Beam [m]5.40
Draft [m]1.45
Height above waterline [m]5.90
Displacement [t]30.20
Fuel [l]3800
Water [l]800
Grey water tank [l]800
Holding tank [l]250
Voltage [V]24
HullGRP
Number of boats4
DesignerGerman Frers

Quick links

linkRemarks
linkPhotos and images
linkEngines
linkStatistics
linkBrochures, flyer
linkManufacturing number list (4)

Remarks

The Storebro Grand Series no. 1 was the first model of a new product line named "Grand Series". The boat was designed by Argentinian German Frers again and broke radically with the previous line style.
The interior was designed by the Swedish design studio Tilberg Design that otherwise styled the design of cruise ships. The color match of the resulting design was then applied to other ranges.

Modification


Engines
SGS No. 1: image 1 of 1 thumb
Hull of the 5. SGS No. 1 (4055)
The ship was offered with two optional propulsion technologies. The choice was between the standard with two Scania engines with 800 HP and shaft drive or alternatively with two MAN with 1050 HP and waterjets.

Finally, only four examples of this ship were built, one with jet drive (hull number 4052).
For potential buyers: There still exists a fifth hull and superstructure. There were also some funiture-elements for this ship, which were offered some time ago at the swedish trading platform Blocket. Nevertheless production of that boat was never started. Since the end of August 2016, the hull is back in the shipyard in Storebro.

2016-09-02 2024-04-04

Photos and images

SGS No. 1: image 1 of 9 thumb SGS No. 1: image 1 of 9 thumb SGS No. 1: image 2 of 9 thumb SGS No. 1: image 3 of 9 thumb SGS No. 1: image 4 of 9 thumb SGS No. 1: image 8 of 9 thumb SGS No. 1: image 9 of 9 thumb SGS No. 1: image 4 of 9 thumb SGS No. 1: image 4 of 9 thumb SGS No. 1: image 4 of 9 thumb
SGS No. 1: image 5 of 9 thumb SGS No. 1: image 6 of 9 thumb SGS No. 1: image 7 of 9 thumb SGS No. 1: image 5 of 9 thumb SGS No. 1: image 6 of 9 thumb SGS No. 1: image 7 of 9 thumb
Model of the SGS No. 1
SGS No. 1: image 5 of 9 thumb SGS No. 1: image 6 of 9 thumb
In some cases, further images of registered ships are available for registered users.
Unless otherwise stated, the images used on this page are subject to copyright. Commercial use without written consent is not permitted. The only exceptions to this copyright are the images provided by the owners of their ships. In this case, the copyright belongs to the respective owners.

Engines

EnginesMAN
D2840 LE403
Scania
DI14 82M
Production1999-2002
FuelDieselDiesel
Stroke44
No. of cylinders108
Bore[mm]128.00127.00
Stroke[mm]142140
Compression ratio13.5:113.5:1
Displacement[l]18.2714.00
Torque[Nm]2552
Engine output[kw/(HP)]772/(1.050)588/(800)
Rotations[1/min]2200
Weight[kg]
EnginesEngine output
[kw/(HP)]
MAN D2840 LE403772/(1.050)
Scania DI14 82M588/(800)

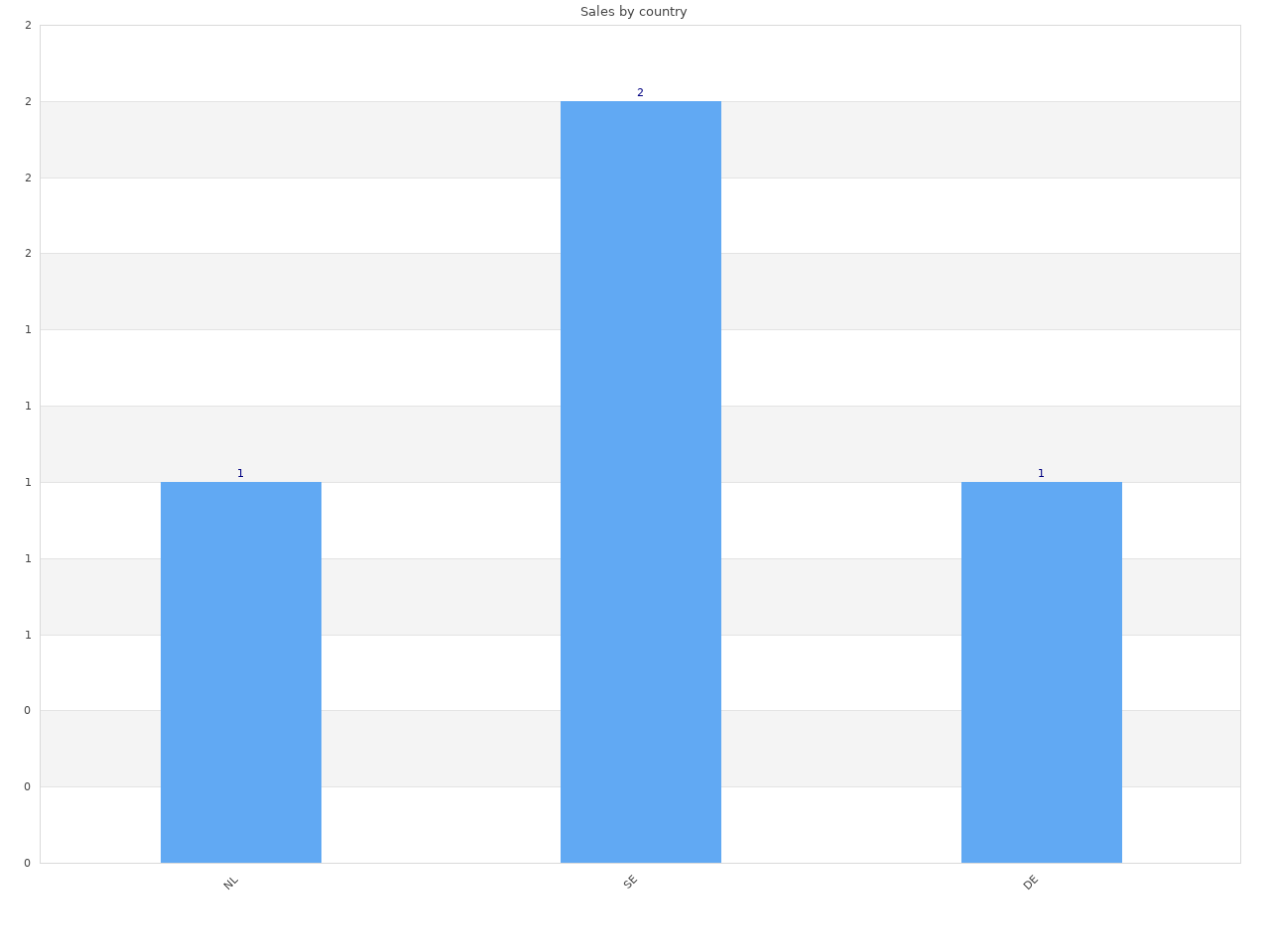

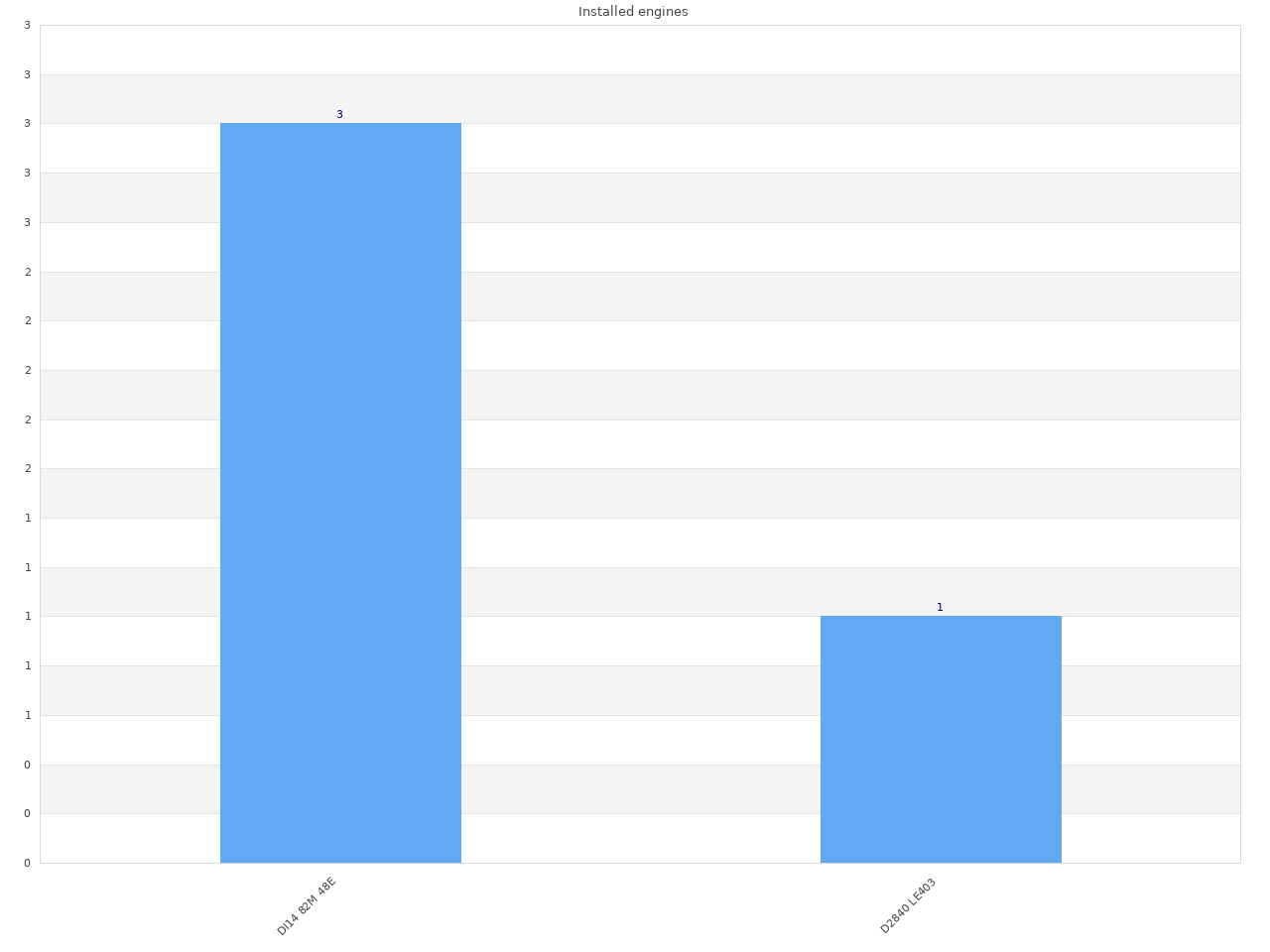

Statistics

sgsno1: image 1 of 1 thumb
sgsno1: image 1 of 1 thumb
As a registered user, you have access to further diagrams on hull colours, layout variants, type of wood used and production figures per year, depending on the type of boat.

Documents

Brochures, flyerLowHi
Storebro Grand Series No. 1 - Brochure 2000deStorebro Grand Series No. 1Download only for registered users
Storebro Grand Series No. 1 - Brochure 2000enStorebro Grand Series No. 1Download only for registered users
Storebro Grand Series No. 1 - Brochure 2000frStorebro Grand Series No. 1Download only for registered users
Storebro Grand Series No. 1 - Brochure 2000seStorebro Grand Series No. 1Download only for registered users
Storebro Grand Series No. 1 - Brochure 2001enStorebro Grand Series No. 1Download only for registered users
Complete brochuresLowHi
Storebro Royal Cruiser - Complete brochure 1999enPDF - Download only for registered users
Storebro Royal Cruiser - Complete brochure 1999sePDF - Download only for registered users
Storebro Royal Cruiser - Complete brochure 2000se
Storebro Royal Cruiser - Complete brochure 2001enPDF - Download only for registered users
Storebro Royal Cruiser - Complete brochure 2002enPDF - Download only for registered users
ManualsLowHi
Storebro Grand Series No. 1 - Owner´s Manual1999enNot available for public download
Technical brochures - ManualsLowHi
MAN 2840 LE 403 - Operation ManualenDownload only for registered owners
Scania DI14 82M - Operation ManualenDownload only for registered owners
Technical brochuresLowHi
CAPS (Computer Assisted Piloting System)se
RR Kamewa FF 450S - Productflyeren
Scania DI9/DI12/DI14 - Datasheeten
ReviewsLowHi
MBY 6/01 - Storebro Grand Series No. 1 - Review 2001PDF - Download only for registered users
Bootswelt.de - Storebro Grand Series No. 1 - Review 2001
Multimedia documentsLowHi
Storebro Grand Series No. 1Download only for registered users
