Storebro Royal Cruiser 430 Baltic


Technical Data

Production period1998-2000
L.o.a. [m]13.13
Beam [m]4.20
Draft [m]1.20
Height above waterline [m]4.77
3.79 - with lowered radar arch
Displacement [t]12.00
Fuel [l]2 x 780
Water [l]2 x 300
Holding tank [l]208
Voltage [V]24
HullGRP
Number of boats18
DesignerJ. Björklund (Hull)
Winfried H. Wilke (Design)

Quick links

linkRemarks
linkPhotos and images
linkEngines
linkStatistics
linkTechnical development
linkBrochures, flyer
linkManufacturing number list (18)

Remarks

The Storebro Royal Cruiser 430 Baltic was the facelifted version of the successful SRC 420 Baltic.

Exterior
Analogous to the SRC 430 Biscay which was presented in 1997 the bathing-platform was slightly stretched and the vent covers for the engine room were integrated into the hull. Furthermore, the white aft panels at the railing were removed and replaced by a complete acrylic glazing. The above measures were already known by the SRC 420 Baltic MKII. The previously silver held side trim was replaced by a nearly black trim. This feature can also be found at the late versions of the SRC 380 Biscay and SRC 395 Biscay.
The rear windows of the aft cabin were treated very differently. Due to the problem that the staircase to the bathing platform now led directly in front of the window, the left window was omitted for some ships, and for others, both aft windows were omitted.
A list of changes compared to the SBC 420 Baltic can be found for the model year 1998 under Technical development.

Interior
Officially, the 430 Baltic was offered with the layout of 420 Baltic from the first years of production. In this layout, the pantry was standard U-shaped. Another change in the interior design concerned the design of the cabinet doors. From the third boat (s/n 3818) shutters were used instead of the cassette doors. This affected the guest cabin in the bow and the pantry. The bed in the owner's cabin graced a padded headboard already introduced in the SRC 420 Baltic MKII.
For the ships that were built at the start of production, the stocks in the old design and layout were still built in. Construction numbers 3816 and 3817 were delivered with an L-shaped pantry and cassette-style doors.

Engines
The Volvo Penta TAMD 73P-A with 413 hp was offered for the SRC 430 Baltic at the beginning of production in 1998. After the shipyard changed to other engine products from the middle of 1998, the Scania DSI9 47M with 450 hp was also offered for the SRC 430 Baltic. With the appearance of the successor, the Scania DI9 59M with 483 hp, this engine was offered as standard engine. Only a Finnish customer got his ship with the then new Volvo Penta TAMD 74P-A and 480 hp.

Miscellaneous
A special model was built for the then shipyard boss Anders Bejting (No. 3820). He got his ship with Scania DI12 engines. In this boat and the boat of then owner of the shipyard Hans Mellström the yard used computers with Windows(r)-NT-systems to display the engine-data on two screens (see Owner's Magazine 1999, p. 8). The system was designed by Anders Bejting and manufactured by DMP Holland. The name of the system was CAPS (Computer Assisted Piloting System). When Hans Mellström sold his boat, the buyer wanted to have the boat as original, so all extra electronic was removed and replaced by standard analogue instruments. The buyer also removed the green leather interior as he has learned that the colour green means bad luck to the boat. In addition the ship of Anders Bejting was provided with extensive leather interior, Recaro driver seat, a stretched bathing-platform, electric winches on the aft deck etc.

2020-01-12 2021-08-06

Photos and images

SRC 430: image 1 of 8 thumb SRC 430: image 2 of 8 thumb SRC 430: image 3 of 8 thumb SRC 430: image 4 of 8 thumb SRC 430: image 5 of 8 thumb SRC 430: image 6 of 8 thumb SRC 430: image 7 of 8 thumb SRC 430: image 8 of 8 thumb
Layout
SRC 430: image 6 of 8 thumb SRC 430: image 6 of 8 thumb
In some cases, further images of registered ships are available for registered users.
Unless otherwise stated, the images used on this page are subject to copyright. Commercial use without written consent is not permitted. The only exceptions to this copyright are the images provided by the owners of their ships. In this case, the copyright belongs to the respective owners.

Engines

EnginesScania
DSI9 47M
Volvo Penta
TAMD73P-A
Volvo Penta
TAMD74P-A
Scania
DI12 44M
Scania
DI9 59M
Production1996-19981997-19981998-2005 *1999-20031999-2003
FuelDieselDieselDieselDieselDiesel
Stroke44444
No. of cylinders66666
Bore[mm]115.00104.77107.00127.00115.00
Stroke[mm]136130135154144
Compression ratio17.0:115.6:117.0:113.5:117.0:1
Displacement[l]8.486.737.3011.709.00
Torque[Nm]116120591474
Engine output[kw/(HP)]331/(450)316/(430)353/(480)373 - 496/
(507 - 675)
355/(483)
Rotations[1/min]22002600260023002300
Weight[kg]1029860 ****1150 ****905 ****
EnginesEngine output
[kw/(HP)]
Scania DSI9 47M331/(450)
Volvo Penta TAMD73P-A316/(430)
Volvo Penta TAMD74P-A353/(480)
Scania DI12 44M373 - 496/
(507 - 675)
Scania DI9 59M355/(483)
* All variants of this engine
**** Weight without gearbox
Attention:

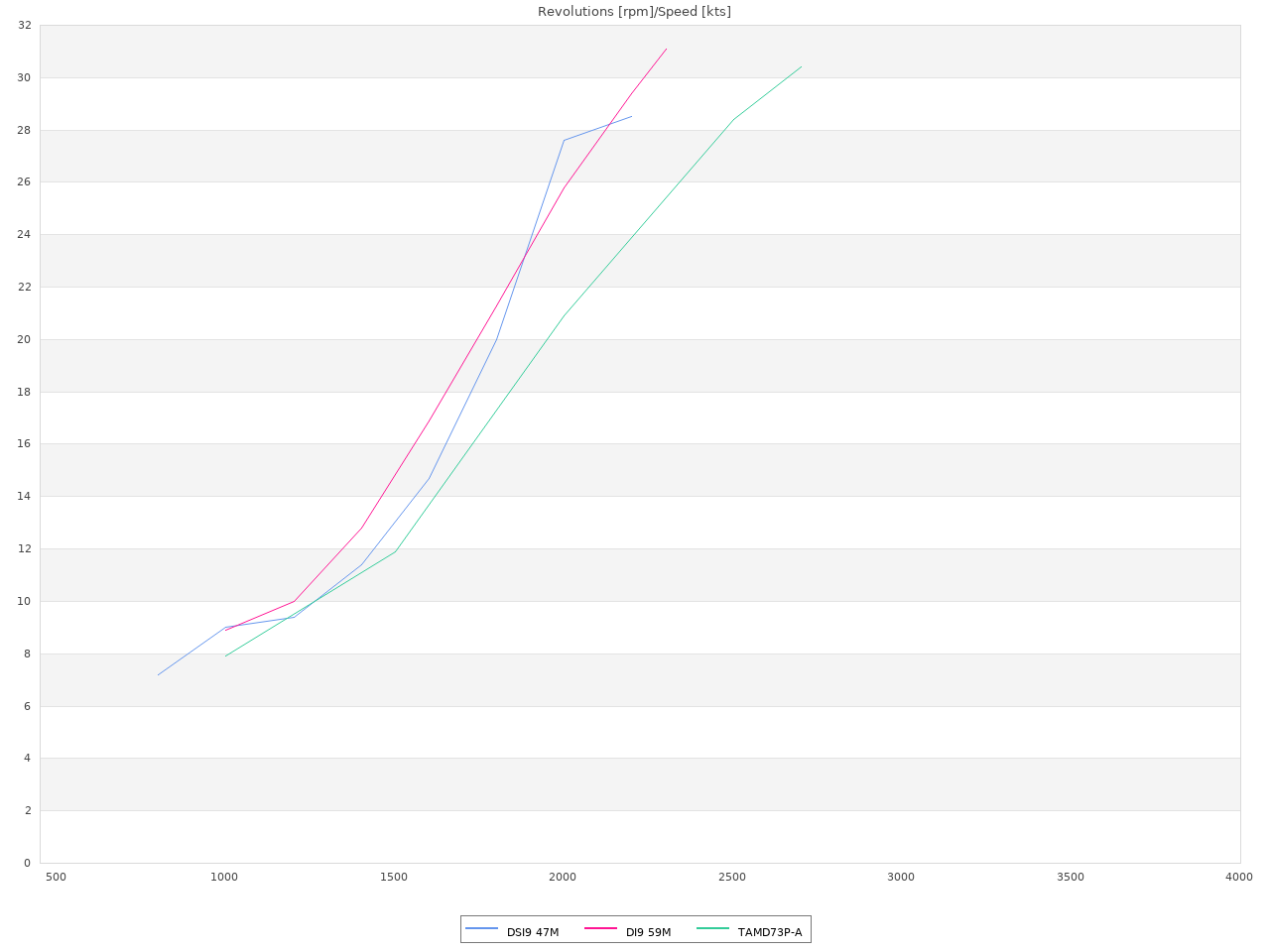

The values given in the motor diagrams below are measured values of individually equipped ships. The measured values can vary depending on the equipment as well as the wind and temperature conditions. These values do not indicate a binding property, but can only serve as indications.
src430ba: image 1 of 1 thumb
As a registered user, depending on the type of boat, you have access to further diagrams regarding consumption, range and noise level.

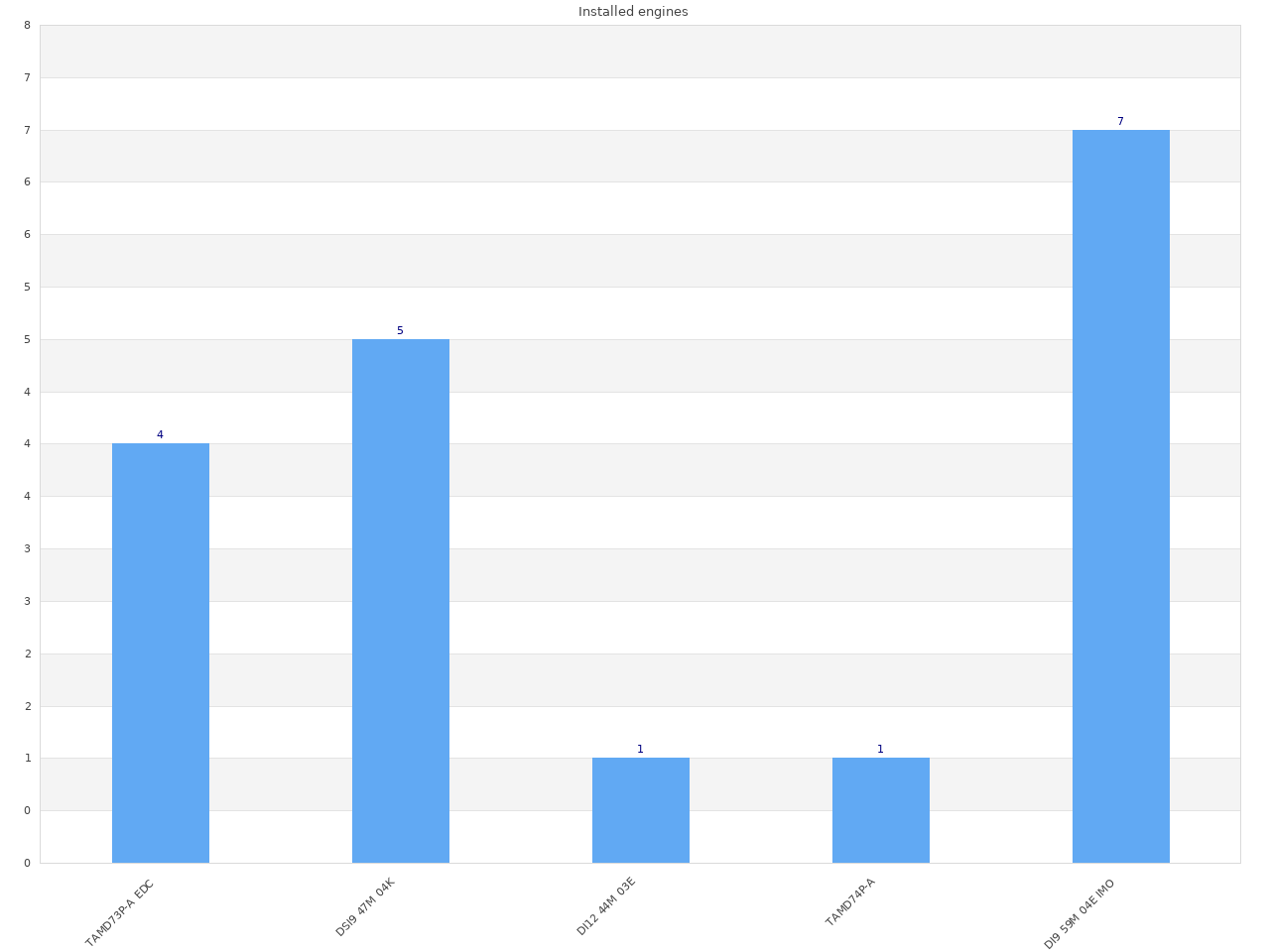

Statistics

src430ba: image 1 of 1 thumb
src430ba: image 1 of 1 thumb
As a registered user, you have access to further diagrams on hull colours, layout variants, type of wood used and production figures per year, depending on the type of boat.

Technical development

As a registered user, you have access to the list of changes in production, depending on the type of boat.

Documents

Brochures, flyerLowHi
Storebro Royal Cruiser 430 Baltic - Brochure 1998enStorebro Royal Cruiser 430 BalticDownload only for registered users
Storebro Royal Cruiser 430 Baltic - Brochure 1999deStorebro Royal Cruiser 430 BalticDownload only for registered users
Storebro Royal Cruiser 430 Baltic - Brochure 1999enStorebro Royal Cruiser 430 BalticDownload only for registered users
Storebro Royal Cruiser 430 Baltic - Brochure 1999frStorebro Royal Cruiser 430 Baltic
Storebro Royal Cruiser 430 Baltic - Brochure 1999seStorebro Royal Cruiser 430 BalticDownload only for registered users
Complete brochuresLowHi
Storebro Royal Cruiser - Complete brochure 1998enPDF - Download only for registered users
Storebro Royal Cruiser - Complete brochure 1999enPDF - Download only for registered users
Storebro Royal Cruiser - Complete brochure 1999sePDF - Download only for registered users
Storebro Royal Cruiser - Complete brochure 2000se
Storebro Royal Cruiser - Complete brochure 2001enPDF - Download only for registered users
ManualsLowHi
SRC 430 Baltic (SN 3837) - Owner´s Manual2000sedDownload only for registered owners
Storebro - Technical documentsLowHi
SRC 420 - Fuel tank - tech. drawing2-5907-00261993seDownload only for registered users
SRC 420 - Fuel tank - tech. drawing2-5907-00331995seDownload only for registered users
SRC 420/430 - Dip tube fuel tank3-5907-00481997seNot available for public download
SRC 430 Baltic - 12/24V Wiring Diagram (>S/N 3817)m8j020051997enNot available for public download
SRC 430 Baltic - Connections E-central (from S/N 3817)mni444021997seNot available for public download
SRC 430 Baltic - TAMD 73 Eng. Wiring Diagram (>S/N 3817)m8j348001997enNot available for public download
SRC 430 Baltic - Connections E-central (from S/N 3824)mni444031998seNot available for public download
SRC 430 Baltic - Wiring and GenSet 230Vm8j371001998enNot available for public download
SRC 430 Baltic - Transportdocument1998enDownload only for registered users
SRC 430 Baltic - 12/24V Wiring Diagram (>S/N 3838)m8j020081999enNot available for public download
Storebro - Test ReportsLowHi
SRC 430 Baltic (S/N 3820) - Test Report Scania DSI 91998enDownload only for registered users
SRC 430 Baltic (S/N 3838) - Test Report Scania DI 92000enDownload only for registered users
Technical brochures - ManualsLowHi
Scania DI12 44M - Operation ManualenDownload only for registered owners
Scania DI9 59M - Operation ManualdeDownload only for registered owners
Scania DI9 59M - Operation ManualenDownload only for registered owners
Twin Disc Marine Transmission MG-5085A Service ManualenNot available for public download
Technical brochuresLowHi
CAPS (Computer Assisted Piloting System)se
Scania DI9/DI12/DI14 - Datasheeten
Volvo Penta TAMD 74P - Productflyeren
Multimedia documentsLowHi
Storebro Royal Cruiser 430 Baltic - VideoDownload only for registered users
