Storebro Royal Cruiser 475 Commander


Technical Data

Production period2002-2004
L.o.a. [m]14.20
Beam [m]4.25
Draft [m]1.00
Height above waterline [m]5.24 - with radar-arch
3.54 - without radar-arch
Displacement [t]13.00
Fuel [l]2 x 780
Water [l]600
Holding tank [l]167
Voltage [V]24
HullGRP
Number of boats16
DesignerJohn H. V. Lindblom

Quick links

linkRemarks
linkPhotos and images
linkEngines
linkStatistics
linkBrochures, flyer
linkManufacturing number list (16)

Remarks

The Storebro 475 Commander was one of the new models that have been developed within the Nimbus Group from 2001. She shared the hull with the SRC 465 Biscay, which in fact she replaced.

With the SRC 475 Commander Nimbus imposed the concept of Commander models for the first time on a Storebro. After the SRC 465-design has already lost a part of its elegance, the SRC 475 Commander was far far away from the old line design and elegance.
Inside, however, the concept offered great advantages over the SRC 465 Biscay. There were 3 separate cabins are realized with 6 full beds. However, many things havn"t thought through in this ship. Thus, a sliding side door was available only on the port side and the seating area to starboard looked as if the designers did not know exactly what to build at this point. The little table that graced this corner seat, crowned the concept. The whole ship was rather dark because of the Nimbus typical small Windows.This was underlined again by the photos for the brochure, which were taken in the dark.
My own reaction at the launch of the ship on the fair: "It looks like a Nimbus" was then still denied. Nevertheless, for me this ship represented the lowest point of the Storebro/Nimbus design.

Miscellaneous
The lateral nameplates were carried out without the white outer trim at the first two or three ships. So they took over the design of the SRC 465 Biscay. At least since ship number four Storebro switched back to the known design.

2023-01-03 2023-01-03

Photos and images

SRC 475: image 1 of 5 thumb SRC 475: image 2 of 5 thumb SRC 475: image 2 of 5 thumb SRC 475: image 3 of 5 thumb SRC 475: image 4 of 5 thumb
In some cases, further images of registered ships are available for registered users.
Unless otherwise stated, the images used on this page are subject to copyright. Commercial use without written consent is not permitted. The only exceptions to this copyright are the images provided by the owners of their ships. In this case, the copyright belongs to the respective owners.

Engines

EnginesVolvo Penta
TAMD74P-B
Volvo Penta
TAMD75P-A
Production2000-20032002-2006
FuelDieselDiesel
Stroke44
No. of cylinders66
Bore[mm]107.00107.00
Stroke[mm]135135
Compression ratio17.0:117.0:1
Displacement[l]7.307.30
Torque[Nm]
Engine output[kw/(HP)]353/(480)353/(480)
Rotations[1/min]26002600
Weight[kg]860 ****
EnginesEngine output
[kw/(HP)]
Volvo Penta TAMD74P-B353/(480)
Volvo Penta TAMD75P-A353/(480)
**** Weight without gearbox

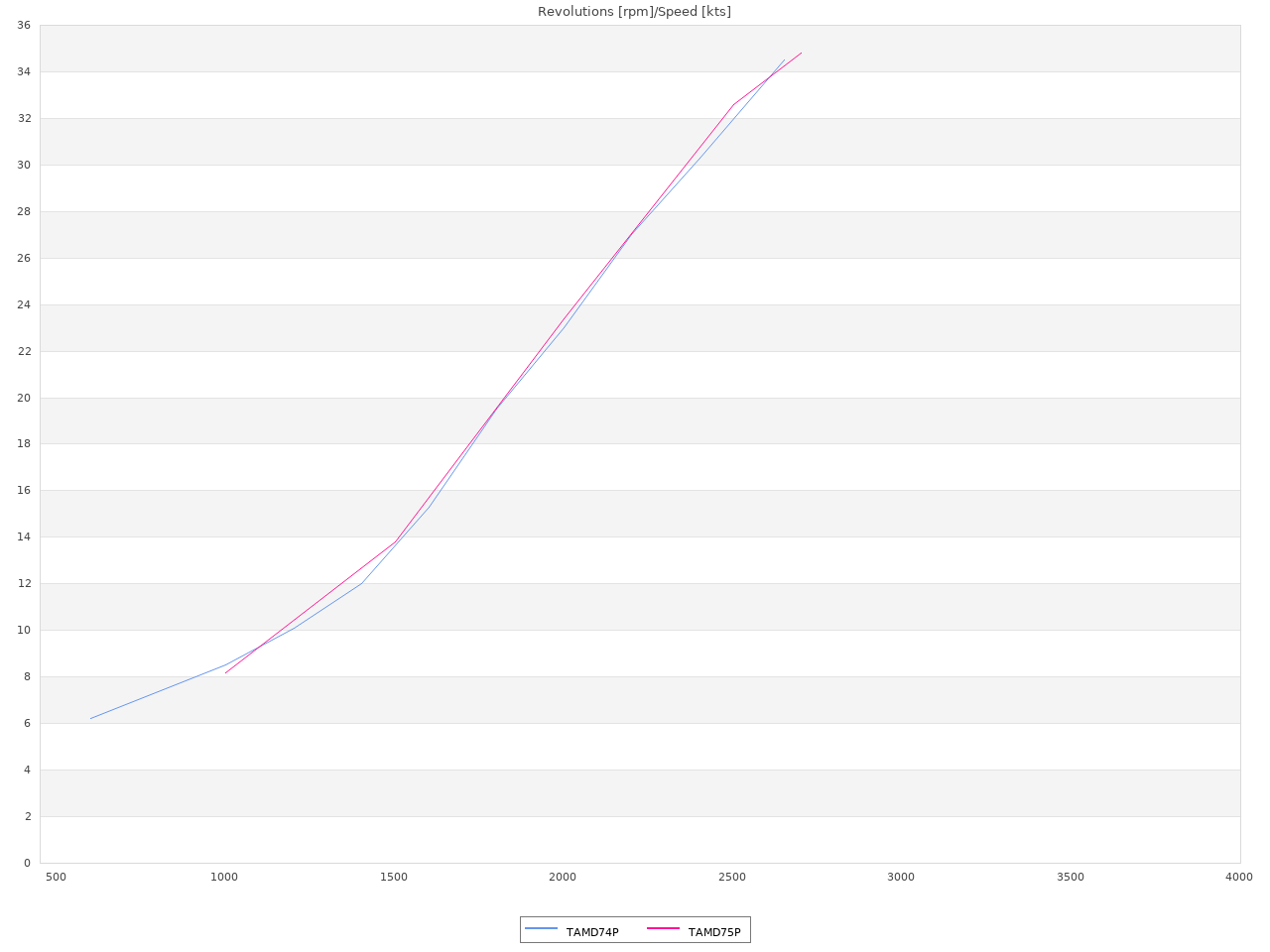

Attention:
The values given in the motor diagrams below are measured values of individually equipped ships. The measured values can vary depending on the equipment as well as the wind and temperature conditions. These values do not indicate a binding property, but can only serve as indications.
src475: image 1 of 1 thumb
As a registered user, depending on the type of boat, you have access to further diagrams regarding consumption, range and noise level.

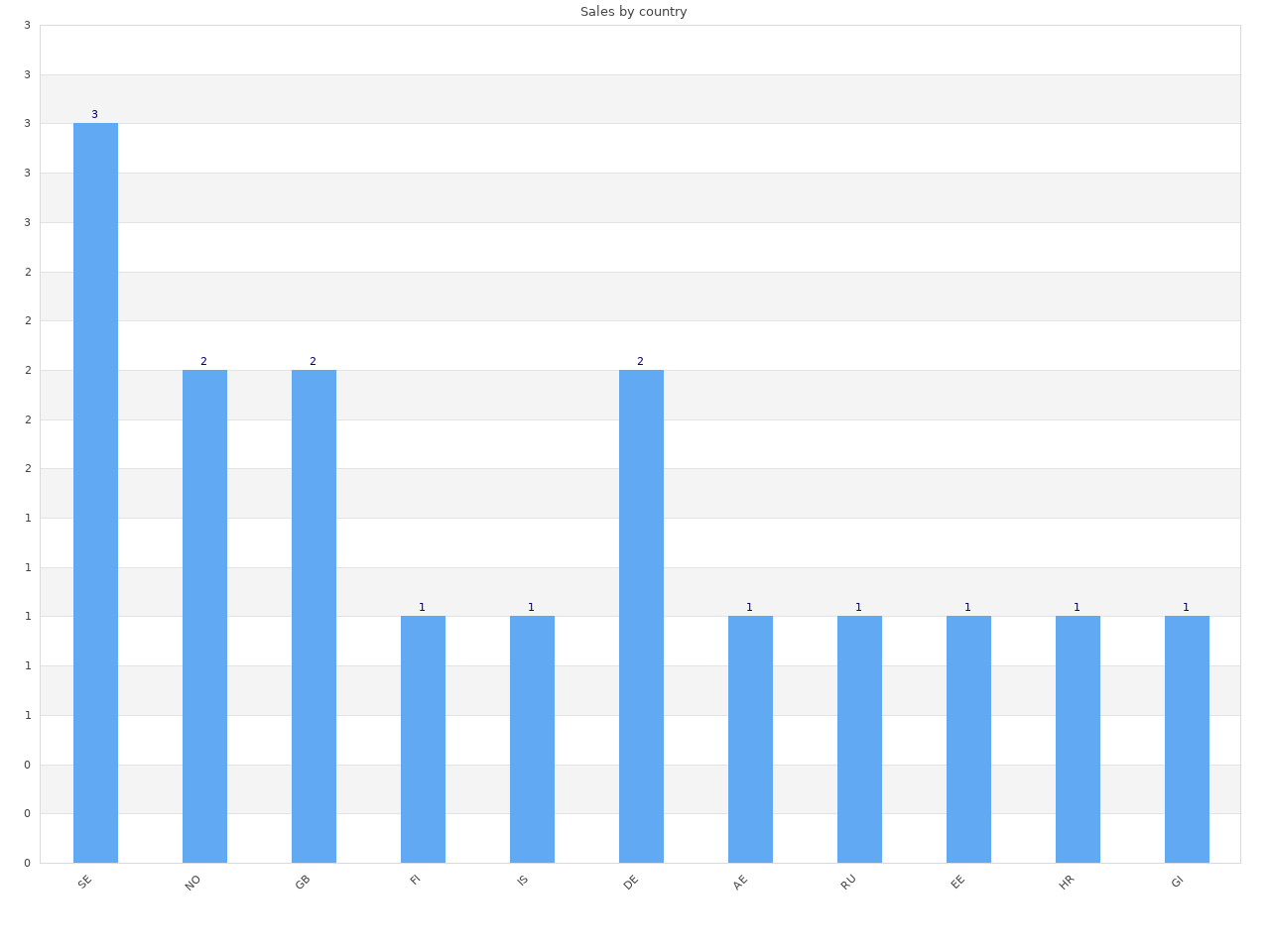

Statistics

src475: image 1 of 1 thumb
src475: image 1 of 1 thumb
As a registered user, you have access to further diagrams on hull colours, layout variants, type of wood used and production figures per year, depending on the type of boat.

Documents

Brochures, flyerLowHi
Storebro 475 Commander - Brochure 2002deStorebro 475 Commander
Storebro 475 Commander - Brochure 2002enStorebro 475 Commander
Storebro 475 Commander - Brochure 2003enStorebro 475 CommanderDownload only for registered users
Storebro 475 Commander - Brochure 2003enStorebro 475 Commander
Storebro 475 Commander - Brochure 2003deStorebro 475 Commander
Complete brochuresLowHi
Storebro Royal Cruiser - Complete brochure 2002enPDF - Download only for registered users
Nimbus Commander Series - Complete brochure 2006sed
Nimbus Commander Series - Complete brochure 2007sed
Nimbus Commander Series - Complete brochure 2008sedPDF - Download only for registered users
Nimbus Commander Series - Complete brochure 2009sed
ManualsLowHi
SRC 475 Commander - Owner´s Manual2002sedDownload only for registered owners
Storebro - Technical documentsLowHi
SRC 475 - Transportdocument2002seDownload only for registered users
SRC 475 - Transportdocumenty27249002002seDownload only for registered users
Technical brochuresLowHi
Volvo Penta TAMD 74P - Productflyeren
Volvo Penta TAMD 75P-A - Productflyeren
Volvo Penta TAMD 75P-A - Productflyerse
ReviewsLowHi
MBY - SRC 475 Commander - Review 2002PDF - Download only for registered users
boote - SRC 475 Commander - Review 2003PDF - Download only for registered users
Vi Båt Ägare - SRC 475 Commander - Review 2003PDF - Download only for registered users
