Storebro Royal 33


Technical Data

Production period1977-1984
L.o.a. [m]10.08
Beam [m]3.40
Draft [m]1.65/1.50
Height above waterline [m]13.50
Displacement [t]4.80 - 5.40
Ballast weight [t]1.40
Fuel [l]150
Water [l]200
Voltage [V]12
HullGRP
Main sail [m2]17.00
Jib [m2]20.00
Jib 100% [m2]23.00
Storm jib [m2]14.00
Genoa [m2]35.00
Genoa 2 [m2]25.00
Spinnaker [m2]85.00
Drifter 170% [m2]42.00
Number of boats61
DesignerRichard E. (Dick) Carter (Hull)
John H. V. Lindblom (Design)

Quick links

linkRemarks
linkPhotos and images
linkEngines
linkStatistics
linkBrochures, flyer
linkManufacturing number list (61)

Remarks

Concept

The Storebro Royal 33 was based on the hull design of the 0.5-ton racer Carter 33, on which Storebro's design team created a classic, fast sailing yacht with plenty of space and comfort on board.

Storebro 33: image 1 of 1 thumb
Storebro Royal 33
MS version with fixed windscreen

Although sold as a cruising and family boat, the Storebro Royal 33 also satisfied more demanding owners. In fact, it was a modified 0.5 tonne hull, which at the time of its appearance could also compete with the very fast "Scampi 30".

In the price lists from 1978 onwards, the ship was offered as the Storebro Royal 33 S or MS. The MS version had a fixed windscreen. A hardtop was also offered as an alternative, but as far as I know this was not realised.

Hull

Lennart Ivarsson and Lars Bjureus had been thinking about a new motorsailer from Storebro for several years. Unlike the ships on the market at the time, this motorsailer was to be more of a sailboat than a motorboat. In 1976, they remembered the moulds of the Carter 33 that had been stored at the Storebro shipyard since the early 1970's. Dick Carter had asked Lennart Ivarsson to store these moulds after Dick Carter had fallen out with the original shipyard of the Carter 33.

Dick Carter drew a new rudder blade for the Storebro Royal 33, as the originally designed rudder was very expensive to produce and also somewhat more susceptible to grounding.

Interior

Unlike many sailboats to date, the Storebro Royal 33 was to offer the same comfort and luxury that was familiar to customers of motorboats. This included the familiar mahogany interior. Another important feature was the passageway between the bow and stern. This meant that young parents did not run the risk of their children crawling through the cockpit unsupervised.

Modifications
Storebro 33: image 1 of 1 thumb
Storebro Royal 33
aft cabin - change of the layout

A major modification concerned the layout of the aft cabin. The berths, which were arranged on two levels from the start of production, were later converted so that both berths were arranged on one level. This made it possible to use an intermediate cushion to create a large continuous berth. This layout was first mentioned for construction number 6037. It is currently not known whether previous construction numbers were also affected.

2024-08-29

Photos and images

Storebro 33: image 1 of 1 thumb Storebro 33: image 1 of 1 thumb Storebro 33: image 1 of 1 thumb Storebro 33: image 1 of 1 thumb Storebro 33: image 1 of 1 thumb Storebro 33: image 1 of 1 thumb Storebro 33: image 1 of 1 thumb Storebro 33: image 1 of 1 thumb
In some cases, further images of registered ships are available for registered users.
Unless otherwise stated, the images used on this page are subject to copyright. Commercial use without written consent is not permitted. The only exceptions to this copyright are the images provided by the owners of their ships. In this case, the copyright belongs to the respective owners.

Engines

EnginesVolvo Penta
MD11C
Volvo Penta
MD17C
Volvo Penta
MD11D
Production1975-19811975-19811981-1983
FuelDieselDieselDiesel
Stroke444
No. of cylinders232
Bore[mm]88.9088.9088.90
Stroke[mm]909090
Compression ratio17.5:117.1:117.5:1
Displacement[l]1.121.681.12
Torque[Nm]
Engine output[kw/(HP)]17/(23)26/(35)18/(25)
Rotations[1/min]250025003000
Weight[kg]
EnginesEngine output
[kw/(HP)]
Volvo Penta MD11C17/(23)
Volvo Penta MD17C26/(35)
Volvo Penta MD11D18/(25)

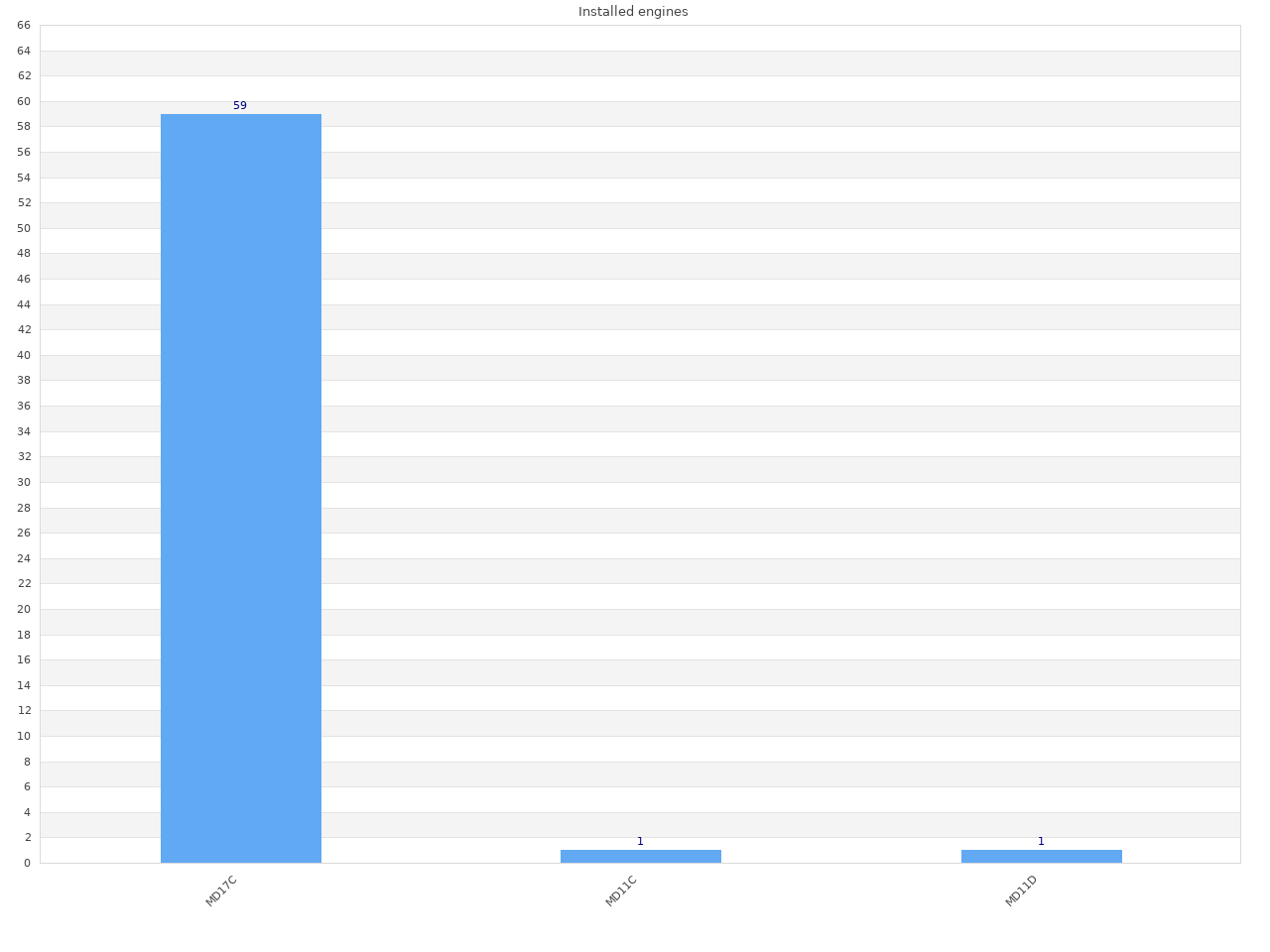

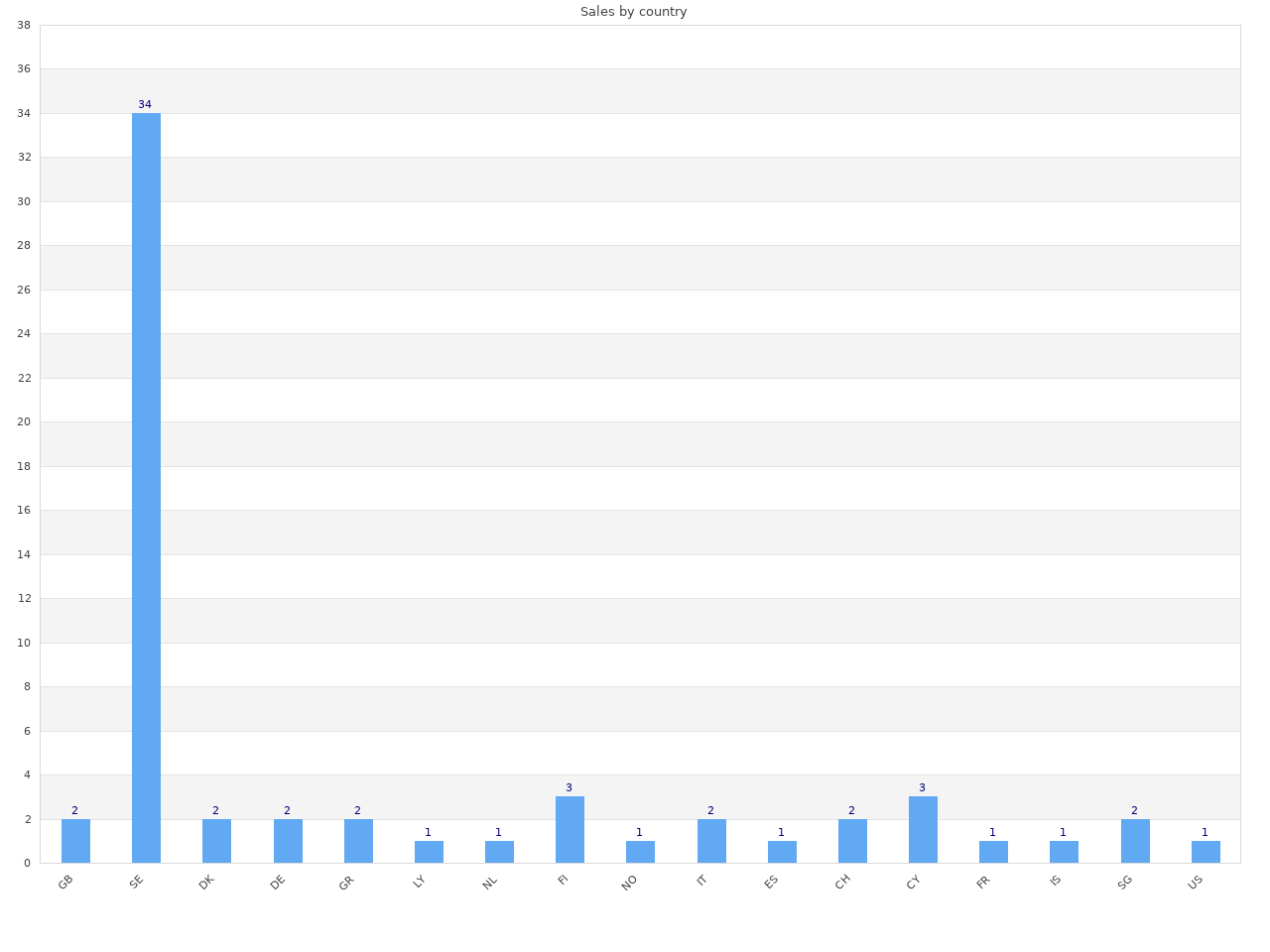

Statistics

storebro33: image 1 of 1 thumb
storebro33: image 1 of 1 thumb
As a registered user, you have access to further diagrams on hull colours, layout variants, type of wood used and production figures per year, depending on the type of boat.

Documents

Brochures, flyerLowHi
Storebro Royal 33 - Flyer 1977esStorebro Royal 33Download only for registered users
Storebro Royal 33 - Brochure 1977esStorebro Royal 33Download only for registered users
Storebro Royal 33 - Brochure 1978enStorebro Royal 33Download only for registered users
PricelistsLowHi
Storebro Bruks AB - No. 53 - Pricelist 1978seNot for public download
Storebro Bruks AB - No. 55 - Pricelist 1979seNot for public download
Storebro Bruks AB - No. 59 - Pricelist 1980seNot for public download
Storebro Bruks AB - No. 60 - Pricelist 1981seNot for public download
Storebro Bruks AB - No. 63B - Pricelist 1983seNot for public download
Complete brochuresLowHi
Storebro Bruks AB - Complete brochure 1978enPDF - Download only for registered users
Storebro - Technical documentsLowHi
Storebro 33 - Wiring diagrams (VP MD17C)0-5108-00031977seNot available for public download
Technical brochures - ManualsLowHi
Volvo Penta MD11C/110S, MD17C/110S - ManualdeDownload only for registered owners
Volvo Penta MD11C/110S, MD17C/110S - ManualenDownload only for registered owners
Volvo Penta MD11C/110S, MD17C/110S - ManualseDownload only for registered owners
Technical brochuresLowHi
Volvo Penta MD11C - Productflyeren
Volvo Penta MD11D - Productflyerse
Volvo Penta MD17C - Productflyeren
Multimedia documentsLowHi
Storebro Royal Cruiser1981Download only for registered users
Storebro Royal Cruiser1981Download only for registered users
Storebro Royal Cruiser1981Download only for registered users
Newspaper articlesLowHi
Storebro 33 - New from Storebro1977Download only for registered users
Storebro 33 - A fast familiy boat (Yacht 04/1981)1981
