Storebro Royal Cruiser 36


Royal 36 - Version before 1986


Royal 36 - Version from 1986 with large flying bridge

Technical Data

Production period1982-1985
1986-1988 - large flybridge
L.o.a. [m]11.00
Beam [m]3.83
Draft [m]1.10
Displacement [t]9.00
Fuel [l]2 x 660
Water [l]400
Voltage [V]24
HullGRP
Number of boats74
DesignerWinfried H. Wilke

Quick links

linkRemarks
linkPhotos and images
linkEngines
linkStatistics
linkTechnical development
linkBrochures, flyer
linkManufacturing number list (74)

Remarks

Concept
The Storebro Royal Cruiser 36 was the smaller sister of the Storebro Royal Cruiser 40. At approximately the same width it was about one meter shorter. Due to the clever layout it nevertheless offered five fixed berths and two toilets. The boat was a very affordable family boat.

The construction of the hull based on the round bilge construction being used by Storebro.

Tests of the new hull started in December 1980. Because of the winter and ice and the fact that the results were not satisfying until then, boat testing had to be continued in spring. So, the Storebro Royal Cruiser 36 was ready to go in production in late 1981.

The original flybridge design shared the Storebro Royal Cruiser 36 with the Storebro Royal Cruiser 40. However, in many cases the lack of space of the flybridge was criticized. In 1986 a new enlarged flybridge version was presented for the two models 36 and 40. It offered more space, but took some of the boat's elegance.

Other
The Storebro Royal Cruiser 36 was quite expensive to produce. Although it was about one metre shorter than the Storebro Royal Cruiser 40, the production costs were similarly high. For this reason, the Storebro Royal Cruiser 36 did not find a direct successor after the end of production.

The Storebro Royal Cruiser 36 with the construction number 2957 was the first ship with a shipyard-mounted aft anchor box. The system had been sold to the customer by Lennart Ivarsson and was developed by Johnny Lindblom. After the first season, the system was improved. With an additional GRP part that reached through the bathing platform, more space was created for the anchor chain. Later, this system was adopted for all subsequent series. The system was then optimally integrated with the new hulls of the SRC 380 and SRC 420.

2021-11-12 2021-11-12

Photos and images

SRC 340: image 1 of 2 thumb SRC 340: image 1 of 2 thumb SRC 340: image 1 of 2 thumb SRC 340: image 1 of 2 thumb SRC 340: image 1 of 2 thumb
Storö 36: image 2 of 2 thumb SRC 340: image 1 of 2 thumb
Prototype building and testing
Storö 36: image 1 of 12 thumb Storö 36: image 1 of 12 thumb Storö 36: image 1 of 12 thumb Storö 36: image 1 of 12 thumb Storö 36: image 1 of 12 thumb Storö 36: image 1 of 12 thumb Storö 36: image 1 of 12 thumb Storö 36: image 1 of 12 thumb Storö 36: image 1 of 12 thumb Storö 36: image 1 of 12 thumb Storö 36: image 1 of 12 thumb Storö 36: image 1 of 12 thumb Storö 36: image 1 of 12 thumb
In some cases, further images of registered ships are available for registered users.
Unless otherwise stated, the images used on this page are subject to copyright. Commercial use without written consent is not permitted. The only exceptions to this copyright are the images provided by the owners of their ships. In this case, the copyright belongs to the respective owners.

Engines

EnginesVolvo Penta
TAMD60B
Volvo Penta
TAMD70D
Volvo Penta
TAMD60C
Volvo Penta
TAMD61A
Production1978-19831978-19831983-19871986-1995
FuelDieselDieselDieselDiesel
Stroke4444
No. of cylinders6666
Bore[mm]98.43104.7798.4398.43
Stroke[mm]120130120120
Compression ratio16.0:114.5:116.0:115.0:1
Displacement[l]5.486.735.485.48
Torque[Nm]625
Engine output[kw/(HP)]103 - 169/
(140 - 230)
130 - 206/
(177 - 280)
112 - 184/
(152 - 250)
218/(296) ***
Rotations[1/min]1800-28001800-25001600-28002800
Weight[kg]750920680 ****829
EnginesEngine output
[kw/(HP)]
Volvo Penta TAMD60B103 - 169/
(140 - 230)
Volvo Penta TAMD70D130 - 206/
(177 - 280)
Volvo Penta TAMD60C112 - 184/
(152 - 250)
Volvo Penta TAMD61A218/(296) ***
*** Power at the propeller shaft
**** Weight without gearbox
Attention:

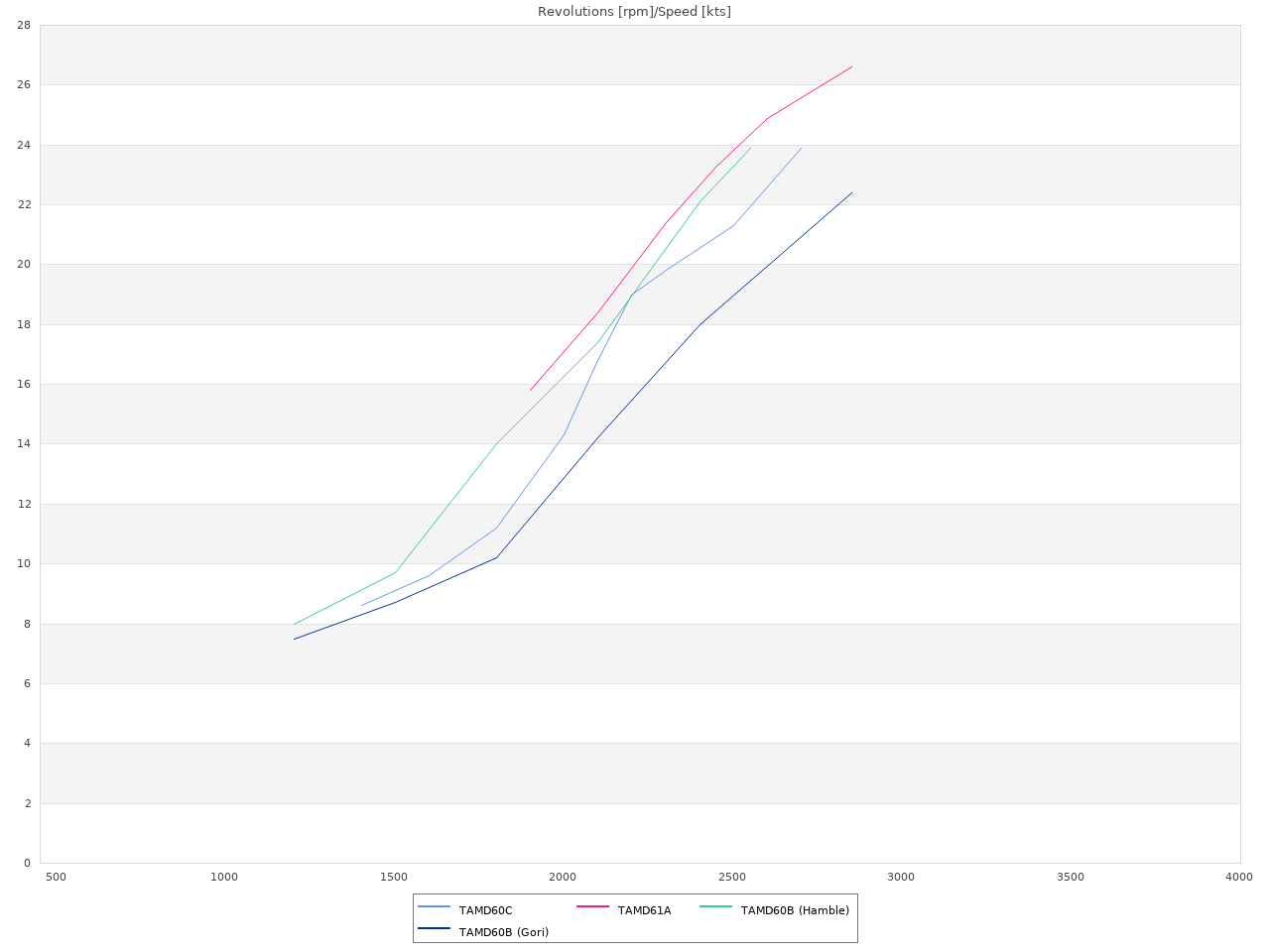

The values given in the motor diagrams below are measured values of individually equipped ships. The measured values can vary depending on the equipment as well as the wind and temperature conditions. These values do not indicate a binding property, but can only serve as indications.
storo36: image 1 of 1 thumb
As a registered user, depending on the type of boat, you have access to further diagrams regarding consumption, range and noise level.

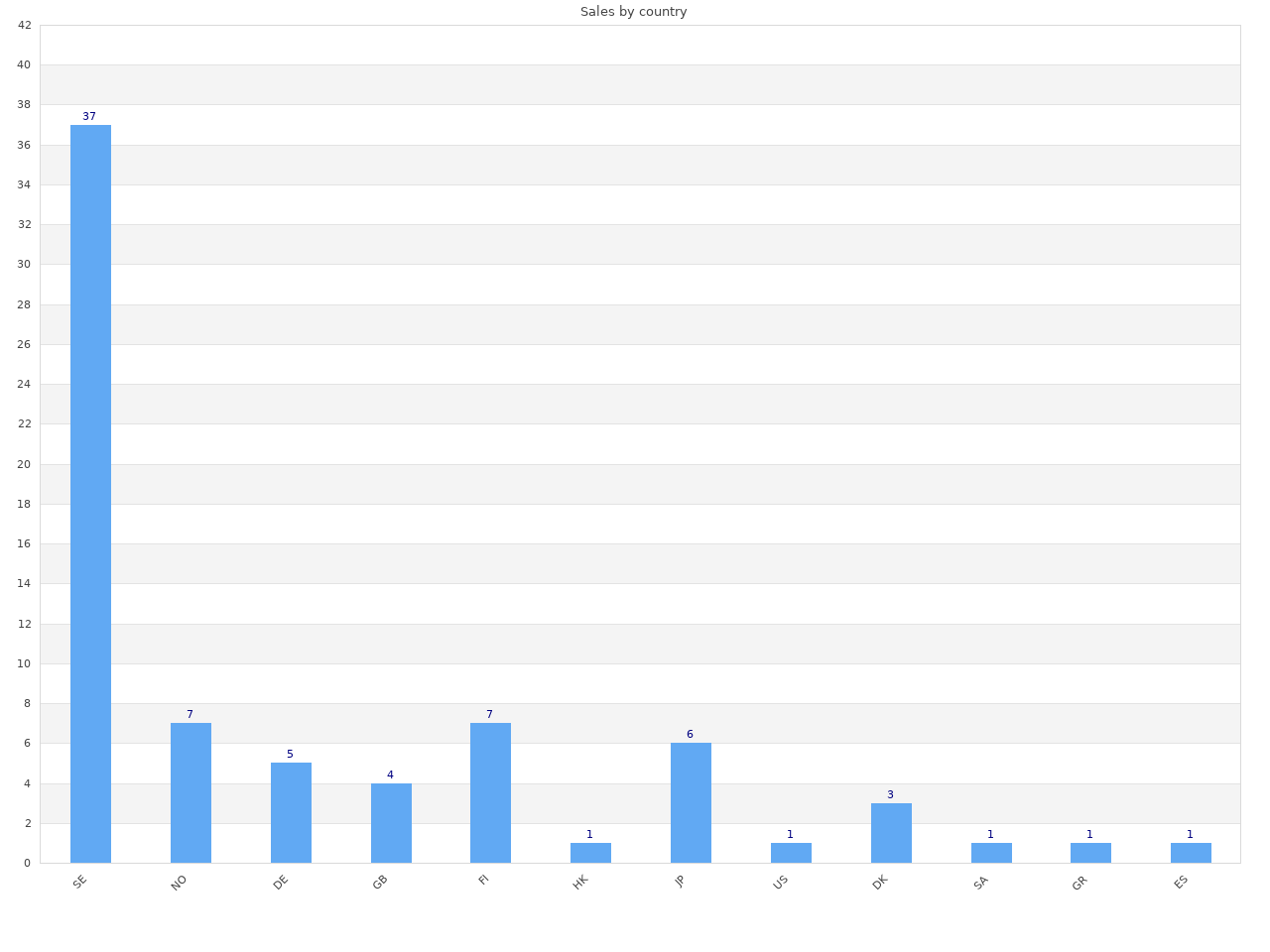

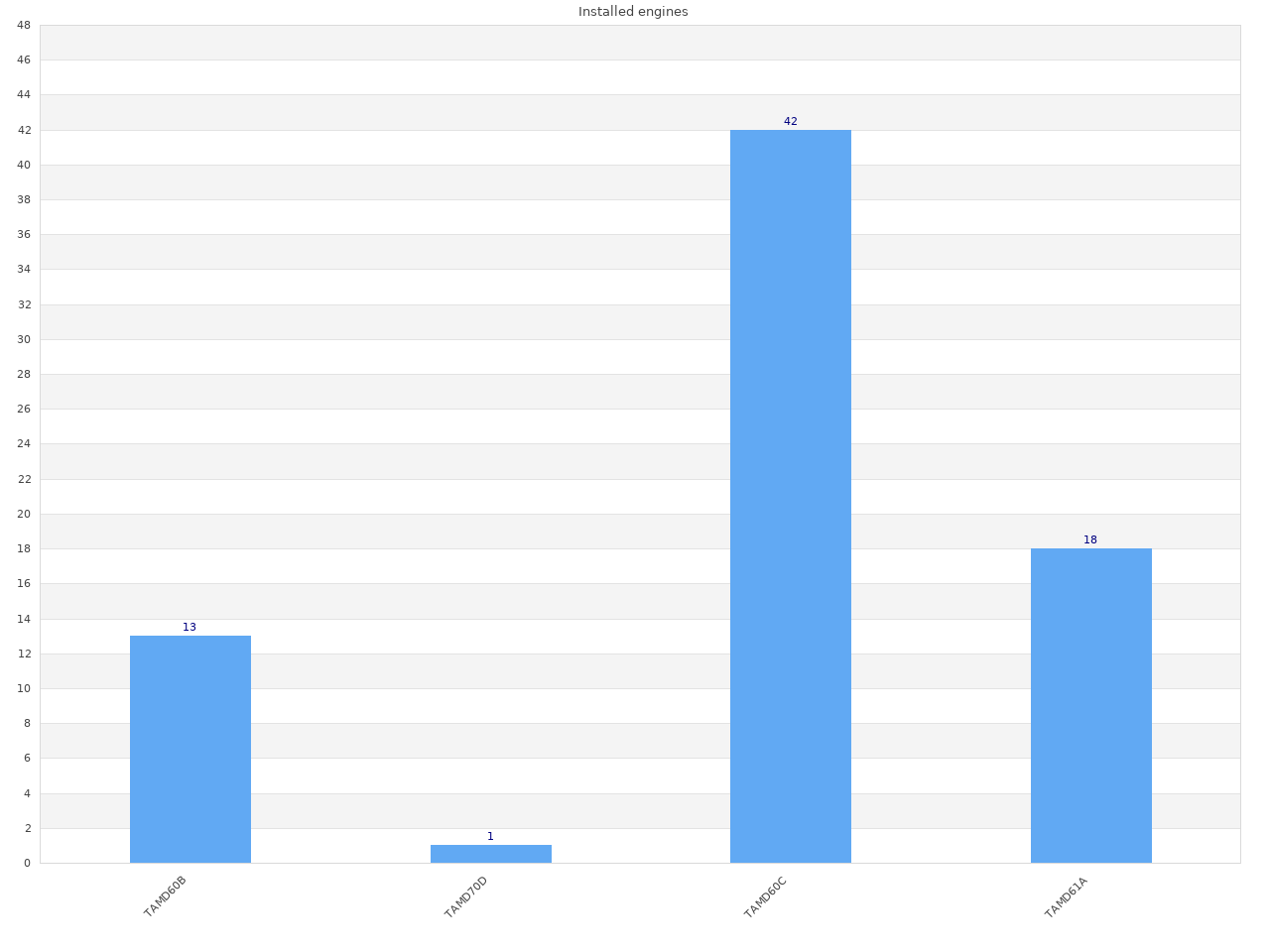

Statistics

storo36: image 1 of 1 thumb
storo36: image 1 of 1 thumb
As a registered user, you have access to further diagrams on hull colours, layout variants, type of wood used and production figures per year, depending on the type of boat.

Technical development

As a registered user, you have access to the list of changes in production, depending on the type of boat.

Documents

Brochures, flyerLowHi
Royal Cruiser 36 - Brochure 1982enRoyal Cruiser 36
Royal Cruiser 36 - Brochure 1983deRoyal Cruiser 36
Royal Cruiser 36 - Brochure 1983enRoyal Cruiser 36Download only for registered users
Royal Cruiser 36 - Brochure 1986enRoyal Cruiser 36
PricelistsLowHi
Storebro Bruks AB - No. 63B - Pricelist 1983seNot for public download
Storebro Bruks AB - No. 65 - Pricelist 1984seNot for public download
Royal Cruiser 36 - Pricelist 1985deNot for public download
Storebro Bruks AB - Nr. 67B - Pricelist 1985seNot for public download
Storebro Bruks AB - No. 69 - Pricelist 1986seNot for public download
Storebro Bruks AB - Nr. 70 - Pricelist 1986esNot for public download
Complete brochuresLowHi
Storebro Bruks AB - Complete brochure 1985enPDF - Download only for registered users
ManualsLowHi
SWF interval relay 12/24V for windshield wipers1987seNot available for public download
Storebro - Technical documentsLowHi
Royal Cruiser 36 - Cradle dimensions4-5310-00061982seDownload only for registered users
Royal Cruiser 36 - Transportdocument1982seDownload only for registered users
Royal Cruiser 36/40 - Steel cradle dimensions2-5550-00041983seDownload only for registered users
RC 36 - Wiring diagrams (VP TAMD 60C)0-5308-00041984enNot available for public download
SRC 36 Baltic MkII - cable list1985seNot available for public download
RC 36 - Wiring diagrams (VP TAMD 61)1-5308-00051987enNot available for public download
Storebro - Test ReportsLowHi
Royal Cruiser 36 - Test Report Volvo Penta TAMD 60C1984enDownload only for registered users
Royal Cruiser 36 - Test Report Volvo Penta TAMD 611987enDownload only for registered users
Technical brochures - ManualsLowHi
Twin Disc Marine Transmission MG-502 Workshop ManualenDownload only for registered owners
Volvo Penta TAMD60A/B, TAMD70C/D - ManualenDownload only for registered owners
Volvo Penta TAMD61/62/63/71/72 - ManualdeDownload only for registered owners
Volvo Penta TAMD61/62/63/71/72 - ManualenDownload only for registered owners
Volvo Penta TAMD61/62/63/71/72 - Workshop ManualenNot available for public download
Technical brochuresLowHi
Volvo Penta - Program 1989en
Volvo Penta TAMD 60B - Productflyeren
Volvo Penta TAMD 60C - Productflyerde
Volvo Penta TAMD 61A - Productflyeren
Volvo Penta TAMD 70D - Productflyeren
Volvo Penta TAMD 70D - Productflyerde
ReviewsLowHi
MBY 03/83 - Royal Cruiser 36 - Review 1983PDF - Download only for registered users
Båtnytt 15/84 - Royal Cruiser 36 - Review 1984PDF - Download only for registered users
Vi Båtägare 12/84 - Royal Cruiser 36 - Review 1984PDF - Download only for registered usersPDF - Download only for registered users
