Storebro 34 Workboat / Sport


Storebro 34 Workboat


Storebro 34 Sport

Technical Data

Production period1981-1991
1991-1992
L.o.a. [m]10.35
Beam [m]3.30
Draft [m]1.00
Height above waterline [m]2.90 - excl. mast
Freeboard front [m]1.45
Freeboard aft [m]1.15
Displacement [t]6.00
Fuel [l]2 x 500
Water [l]2 x 140 (WB)
200 (Sport)
Voltage [V]12
HullGRP
Number of boats43 - Workboat
10 - Sport

Quick links

linkRemarks
linkPhotos and images
linkEngines
linkStatistics
linkBrochures, flyer
linkManufacturing number list (53)

Remarks

Concept
The Storebro 34 Workboat was developed in closed cooperation with the Royal Swedish Navy. The strict requirements that were asked by the Navy lead to a versatile and extremely robust design of the boat. The large quarterdeck provided the basis for a variety of tasks. A small hydraulic crane was able to lift loads on deck.

In 1991 the civilian version "Sport" was placed on the market. This model was equipped more comfortable and was focused on the sport skipper. The exterior distinguishing feature is the one-piece side cabin window.

Engines
From the start of production Volvo Penta TAMD60B were installed. The engines were specified for continuous operation and made 185 hp instead of the 225 hp of the sports boat variant. Depending on the customer's request but also the sport boat variants were installed. From 1988, 20 ships were delivered to Japan, which were equipped with TAMD61A and 296 hp.
The "Sport" version was equipped with the lighter KAMD42A.

Others
Boat number 2878 for Bahrain was equipped with Castoldi waterjet drives. This shows that the J32/J34 was not the first ship from Storebro with jet engines.

2021-07-15 2021-07-15

Photos and images
Storebro 34 Workboat
Storebro 34 WB: image 1 of 6 thumb Storebro 34 WB: image 2 of 6 thumb Storebro 34 WB: image 2 of 6 thumb Storebro 34 WB: image 2 of 6 thumb Storebro 34 WB: image 2 of 6 thumb Storebro 34 WB: image 3 0f 6 thumb Storebro 34 WB: image 5 0f 6 thumb
Storebro Royal Cruiser 34 Sport
Storebro 34 WB: image 6 0f 6 thumb Storebro 34 WB: image 6 0f 6 thumb Storebro 34 WB: image 4 0f 6 thumb Storebro 34 WB: image 4 0f 6 thumb Storebro 34 WB: image 4 0f 6 thumb Storebro 34 WB: image 4 0f 6 thumb Storebro 34 WB: image 4 0f 6 thumb Storebro 34 WB: image 6 0f 6 thumb
Testing the 'Adler 34 Workboat' with the German Wasserschutzpolizei
Storebro 34 WB: image 4 0f 6 thumb Storebro 34 WB: image 4 0f 6 thumb Storebro 34 WB: image 4 0f 6 thumb Storebro 34 WB: image 4 0f 6 thumb
Pictures of the interior
Storebro 34 WB: image 4 0f 6 thumb Storebro 34 WB: image 4 0f 6 thumb Storebro 34 WB: image 4 0f 6 thumb
Pictures of a boat with Castoldi-waterjets
Storebro 34 WB: image 2 of 6 thumb Storebro 34 WB: image 2 of 6 thumb
In some cases, further images of registered ships are available for registered users.
Unless otherwise stated, the images used on this page are subject to copyright. Commercial use without written consent is not permitted. The only exceptions to this copyright are the images provided by the owners of their ships. In this case, the copyright belongs to the respective owners.

Engines

EnginesPerkins
T6.3544 M		Volvo Penta
TAMD60B		Volvo Penta
TAMD60C		Volvo Penta
TAMD41A		Volvo Penta
TAMD61A		Volvo Penta
KAMD42A
Production1978-19831983-19871986-19891986-19951991-1993 *
FuelDieselDieselDieselDieselDieselDiesel
Stroke444444
No. of cylinders666666
Bore[mm]98.4098.4398.4392.0098.4392.00
Stroke[mm]1271201209012090
Compression ratio15.5:116.0:116.0:116.0:115.0:117.8:1
Displacement[l]5.805.485.483.595.483.59
Torque[Nm]625
Engine output[kw/(HP)]165/(225)103 - 169/
(140 - 230)		112 - 184/
(152 - 250)		147/(200)218/(296) ***157/(213)
Rotations[1/min]28001800-28001600-2800380028003800-3900
Weight[kg]579 ****750680 ****465829500
EnginesEngine output
[kw/(HP)]
Perkins T6.3544 M165/(225)
Volvo Penta TAMD60B103 - 169/
(140 - 230)
Volvo Penta TAMD60C112 - 184/
(152 - 250)
Volvo Penta TAMD41A147/(200)
Volvo Penta TAMD61A218/(296) ***
Volvo Penta KAMD42A 157/(213)
* All variants of this engine
*** Power at the propeller shaft
**** Weight without gearbox

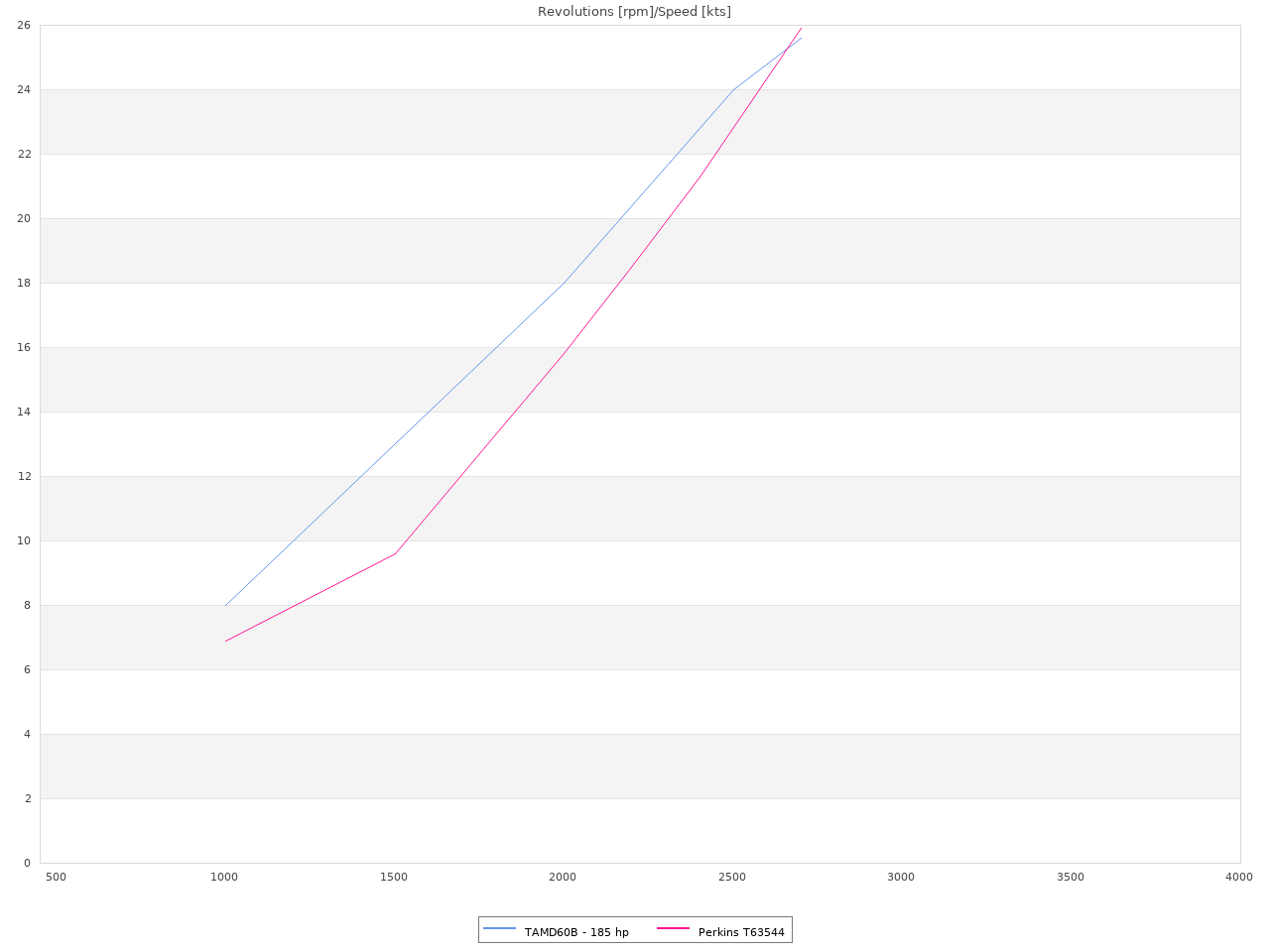

Attention:
The values given in the motor diagrams below are measured values of individually equipped ships. The measured values can vary depending on the equipment as well as the wind and temperature conditions. These values do not indicate a binding property, but can only serve as indications.
storowb: image 1 of 1 thumb
As a registered user, depending on the type of boat, you have access to further diagrams regarding consumption, range and noise level.

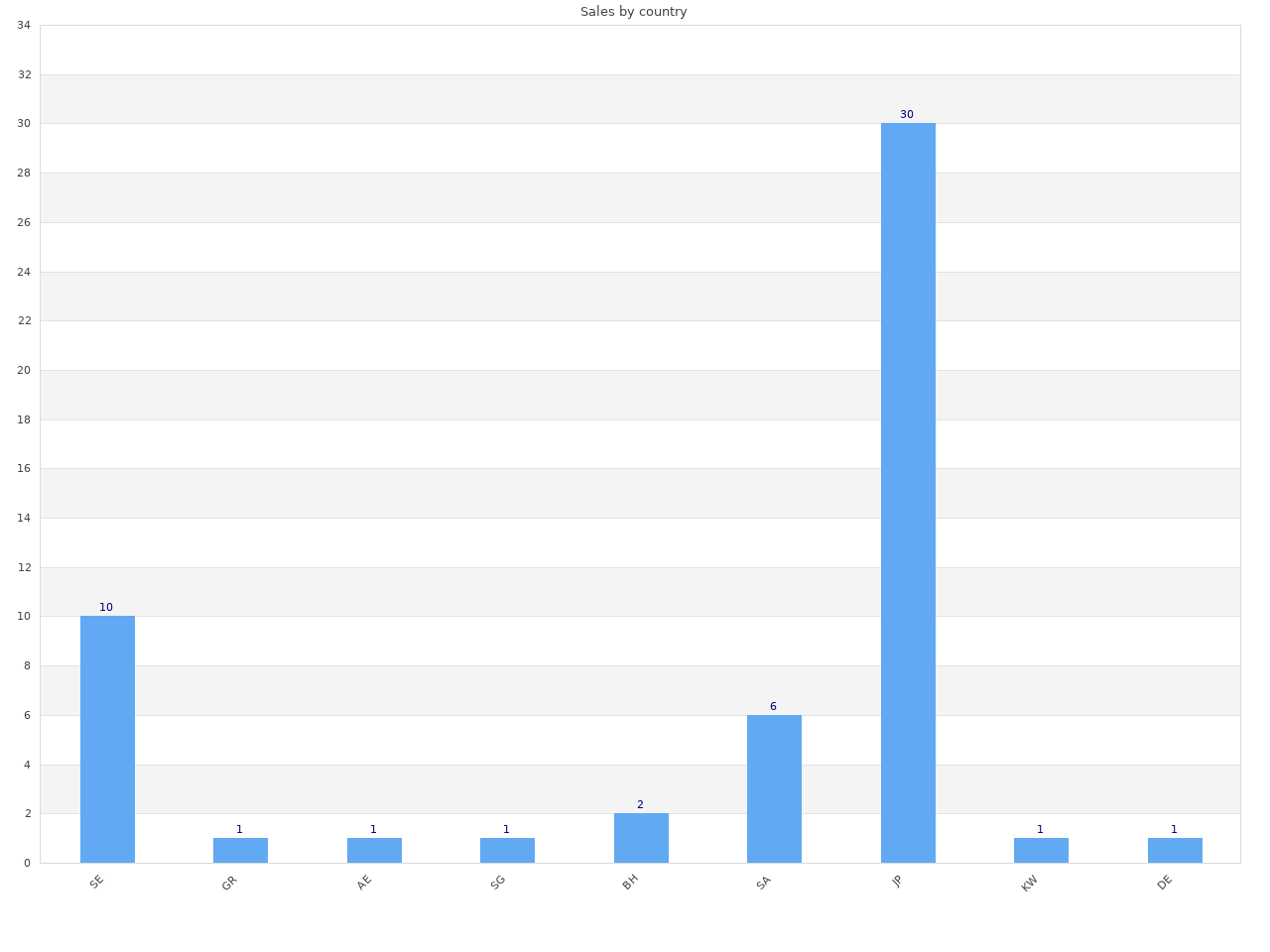

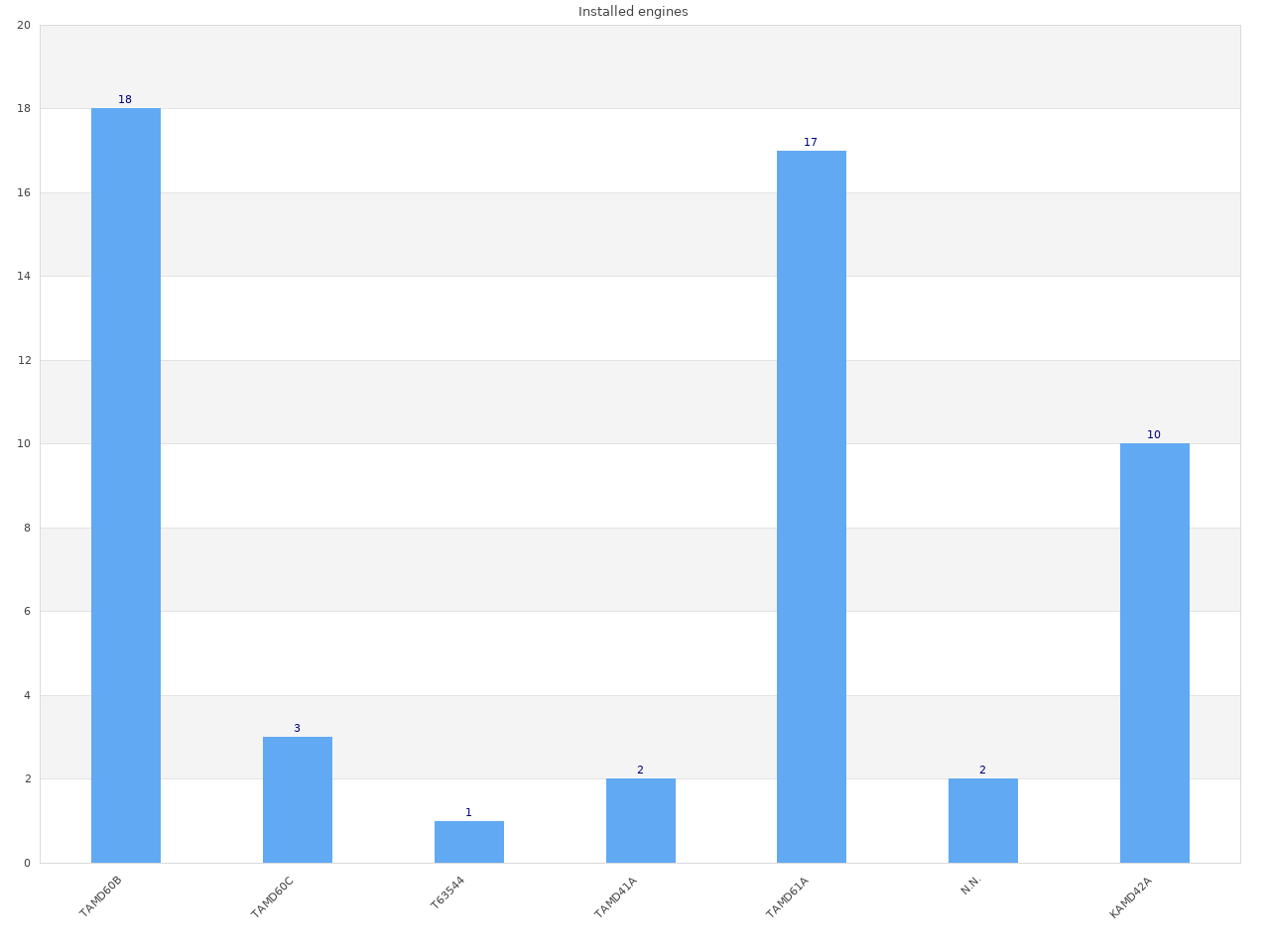

Statistics

storowb: image 1 of 1 thumb
storowb: image 1 of 1 thumb
As a registered user, you have access to further diagrams on hull colours, layout variants, type of wood used and production figures per year, depending on the type of boat.

Documents

Brochures, flyerLowHi
Storebro 34 Workboat - Brochure 1981enStorebro 34 Workboat
Storebro 34 Workboat - Brochure 1983enStorebro 34 WorkboatDownload only for registered users
Storebro 34 Sport - Brochure 1991enStorebro 34 SportDownload only for registered users
PricelistsLowHi
Storebro Bruks AB - Workboats - Pricelist 1984seNot for public download
Storebro Bruks AB - Nr. 79 - Pricelist 1991seNot for public download
Storebro Royal Cruiser - Pricelist 1993deNot for public download
Storebro Royal Cruiser - Pricelist 1994deNot for public download
Complete brochuresLowHi
Storebro Bruks AB - Complete brochure 1985enPDF - Download only for registered users
Storebro Royal Cruiser - Complete brochure 1990en
Storebro Royal Cruiser - Complete brochure 1992en
Storebro Royal Cruiser - Complete brochure 1995dePDF - Download only for registered users
Storebro Royal Cruiser - Complete brochure 1997enPDF - Download only for registered users
Storebro - Technical documentsLowHi
Storebro WB - Wiring diagrams (VP TAMD41/61)1-7108-00101989seNot available for public download
Storebro - Test ReportsLowHi
Storebro WB - Test Report Volvo Penta TAMD 60B1981enDownload only for registered users
Technical brochures - ManualsLowHi
Twin Disc Marine Transmission MG-502 Workshop ManualenDownload only for registered owners
Volvo Penta KAMD42A - ManualenDownload only for registered owners
Volvo Penta KAMD42A - ManualseDownload only for registered owners
Volvo Penta TAMD61/62/63/71/72 - ManualdeDownload only for registered owners
Volvo Penta TAMD61/62/63/71/72 - ManualenDownload only for registered owners
Technical brochuresLowHi
Twin Disc MG 502/MG 502-1 brochureenNot available for public download
Volvo Penta TAMD 60B - Productflyeren
Volvo Penta TAMD 60C - Productflyerde
Volvo Penta TAMD 61A - Productflyeren
