Sea Eagle


Technical Data

Production period1961-1964
L.o.a. [m]9.41
Beam [m]2.65
Draft [m]1.36
Displacement [t]3.57
Ballast weight [t]1.60
Fuel [l]30
Water [l]60
Voltage [V]12
HullMahogany
Main sail [m2]18.90
Storm main sail [m2]
Jib 100% [m2]17.94
Total sail area [m2]36.84
Number of boatsca. 70
DesignerOlle Enderlein

Quick links

linkRemarks
linkPhotos and images
linkEngines
linkStatistics
linkBrochures, flyer
linkManufacturing number list (56)

Remarks

Sea Eagle I (Havsörnen I) was the first sailing boat series which was initiated by Storebro. The boat was an Olle-Enderlein-design and was presented in 1962.

Miscellaneous Striking was the construction of the motor shaft and the propeller, which ended behind the rudder blade. Usual is a construction in which the propeller sits in front of the rudder blade. To avoid the collision of motor shaft and rudder blade, the motor shaft was shifted slightly to starboard. 2020-02-27

Photos and images
Havsörnen I: image 1 of 1 thumb Havsörnen I: image 1 of 1 thumb Havsörnen I: image 1 of 1 thumb Havsörnen I: image 1 of 1 thumb Havsörnen I: image 1 of 1 thumb Havsörnen I: image 1 of 1 thumb
Photos during production
Havsörnen I: image 1 of 1 thumb Havsörnen I: image 1 of 1 thumb Havsörnen I: image 1 of 1 thumb Havsörnen I: image 1 of 1 thumb Havsörnen I: image 1 of 1 thumb Havsörnen I: image 1 of 1 thumb Havsörnen I: image 1 of 1 thumb Havsörnen I: image 1 of 1 thumb Havsörnen I: image 1 of 1 thumb Havsörnen I: image 1 of 1 thumb Havsörnen I: image 1 of 1 thumb
In some cases, further images of registered ships are available for registered users.
Unless otherwise stated, the images used on this page are subject to copyright. Commercial use without written consent is not permitted. The only exceptions to this copyright are the images provided by the owners of their ships. In this case, the copyright belongs to the respective owners.

Engines

EnginesVolvo Penta
C23		Volvo Penta
MD1
Production1956-19641958-1970
FuelPetrol/GasolineDiesel
Stroke44
No. of cylinders21
Bore[mm]79.37
Stroke[mm]90
Compression ratio18.0:1
Displacement[l]1.080.45
Torque[Nm]
Engine output[kw/(HP)]6 - 10/
(8 - 14)		4 - 5/
(5 - 7)
Rotations[1/min]1000-18002000-2300
Weight[kg]130
EnginesEngine output
[kw/(HP)]
Volvo Penta C236 - 10/
(8 - 14)
Volvo Penta MD14 - 5/
(5 - 7)

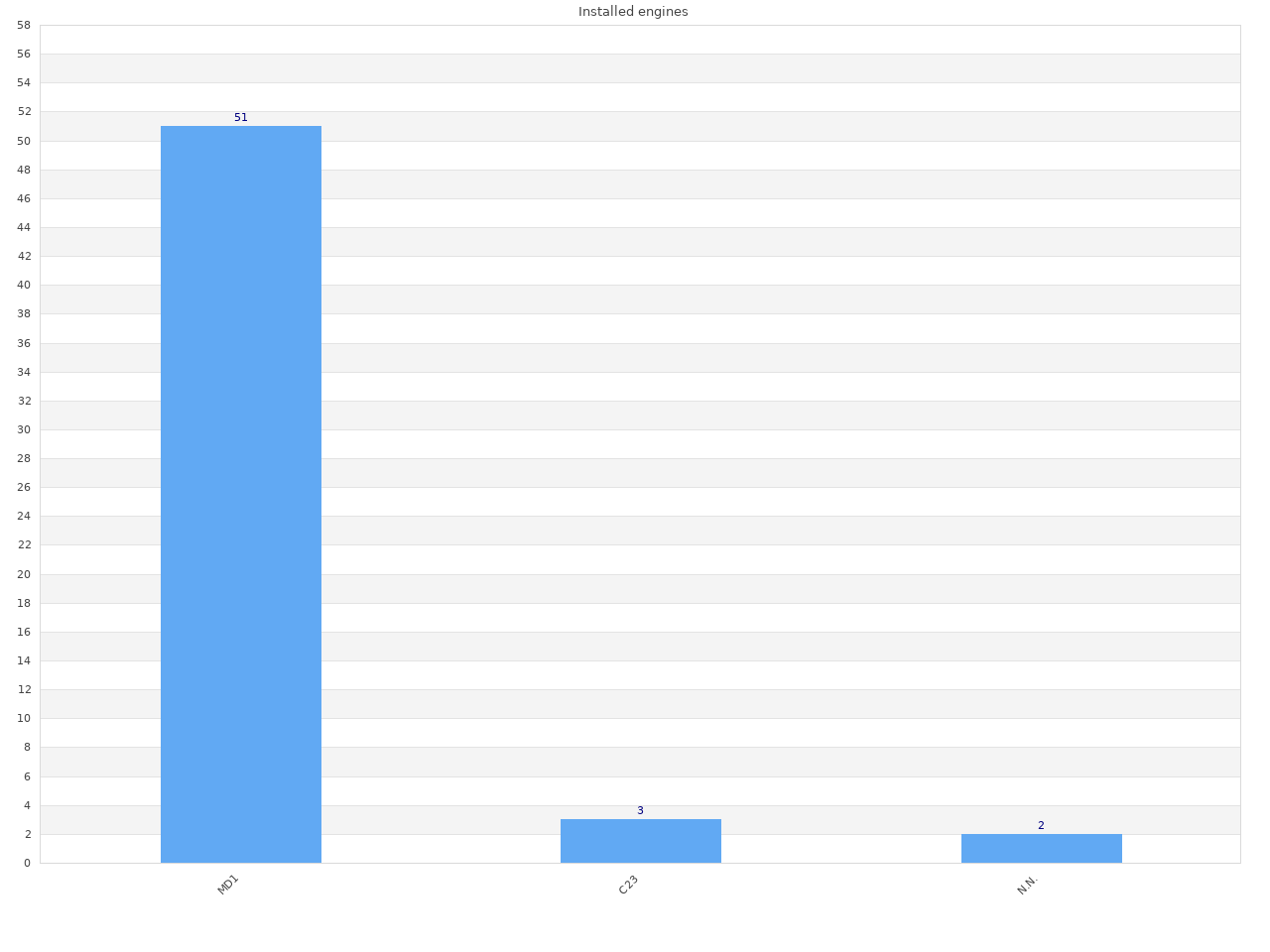

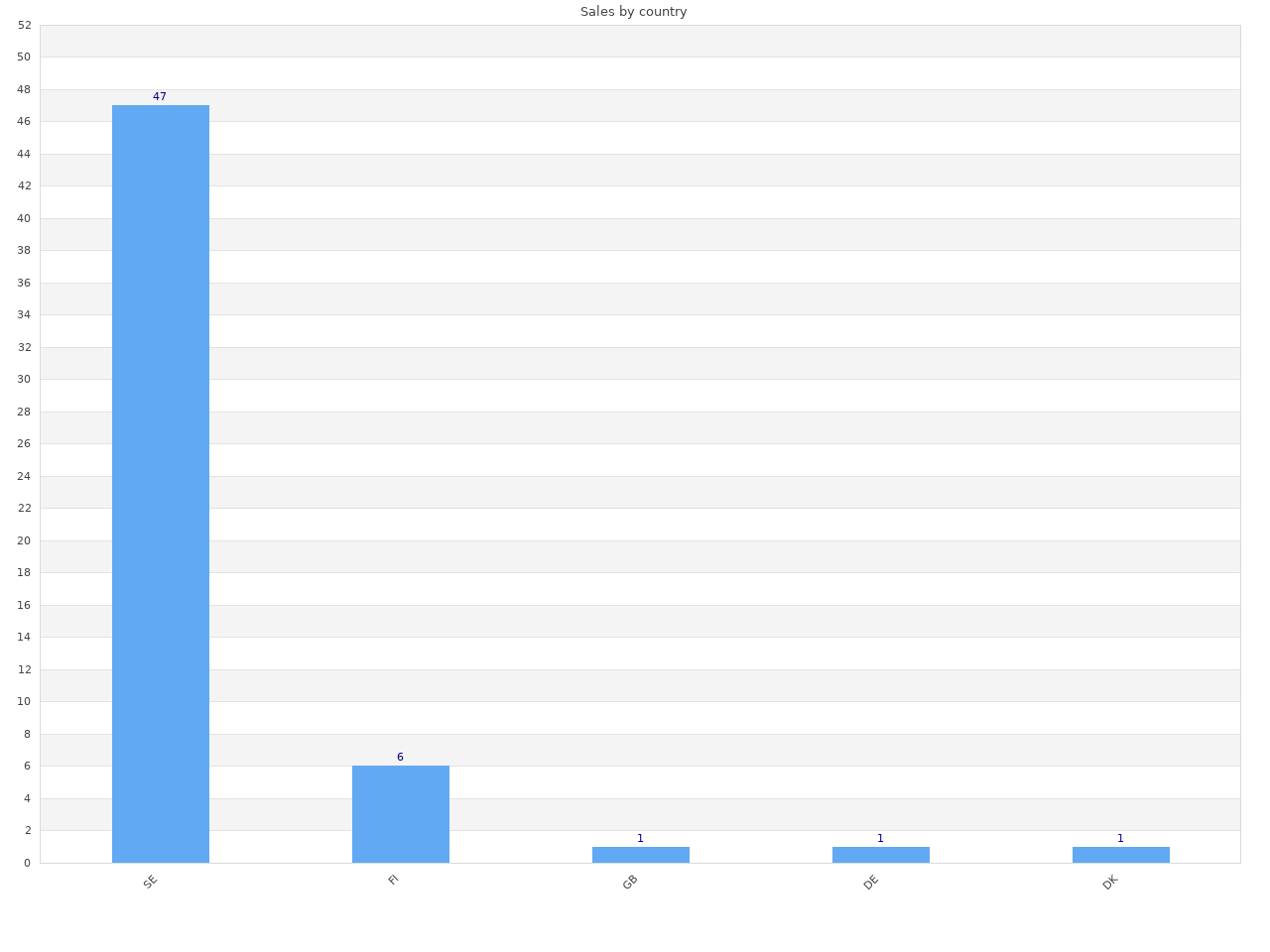

Statistics

havsornen1: image 1 of 1 thumb
havsornen1: image 1 of 1 thumb
As a registered user, you have access to further diagrams on hull colours, layout variants, type of wood used and production figures per year, depending on the type of boat.

Documents

Brochures, flyerLowHi
Sea Eagle I - Flyer 1961esSea Eagle I
Sea Eagle I - Brochure 1962esSea Eagle IDownload only for registered users
PricelistsLowHi
AB Örnmaskiner - No. 25S - Pricelist 1963sePDF - Download only for registered users
AB Örnmaskiner - No. 25S - Pricelist 1963dkPDF - Download only for registered users
Complete brochuresLowHi
AB Örnmaskiner - Complete brochure 1964enPDF - Download only for registered users
AB Örnmaskiner - Complete brochure 1964dePDF - Download only for registered users
Technical brochuresLowHi
Volvo Penta - Program 1959se
Volvo Penta - Program 1960se
Volvo Penta - Program 1964de
Volvo Penta - Program 1970en
Legend:
pdf pdf grey pdf grey register pdf grey register pdf srcc

PDF-file available for download

PDF-file not available for download

PDF-file only available for registered users

PDF-file only available for registered owners

PDF-file only available for SRCC members
