STOREBRO Passion
user Home Passion Boats Imprint

Sea Chaser I (Solö Ruff)


Technical Data

Production period1952-1964
L.o.a. [m]6.85 - 7.35
Beam [m]2.25
Draft [m]0.70
Displacement [t]1.20
Fuel [l]75 - 130
Voltage [V]12
HullMahogany
Number of boatsca. 600
DesignerEinar Runius

Quick links

linkRemarks
linkPhotos and images
linkEngines
linkStatistics
linkBrochures, flyer
linkManufacturing number list (565)

Remarks

Solö Ruff: image 1 of 1 thumb
Visit of the new Solö Ruff by Gunnar Sundmann (VD AB Gösta Berg), Gösta Berg, Ivar Gustafsson, Harald Wiklund (VD Volvo Penta), Tage Truedsson and Einar Runius (in black) (from right to left).
After the young Örnmaskiner shipyard had previously manufactured only rowing boats or the camping boats on behalf of Electrolux, it was decided to develop an own product range. As a designer Einar Runius was chosen. Runius designed both the smaller Passbåten Örnen and the larger Ruffbåten Örnen. With the start of production of Express Cruiser (Svanö) in 1956 the price list no. 16 listed the boats named "Vindö" and "Solö" for the first time. This layed the foundation for a long Solö series.

The Solö Ruff was an elegant 24-feet cabin cruiser with inboard and shaft drive. With this boat Örnmaskiner started the production of about 1,100 boats of all Solö boats. The boat was a great sales success and made the name of the shipyard widely known. In addition to the shipyard, the Solö Ruff was also a great success for its dealer Gösta Berg and for the engine supplier Volvo Penta. Storebro became the biggest customer of Volvo Penta at times.

Modifications
Solö Ruff: image 1 of 1 thumb
Solö Ruff of 1953 (No. 22) with two round port lights
and single side window
When the Solö Ruff came on the market in 1952, the hull length was specified with about 6.85 meters. Outer mark of the boats built until 1953 are the two round portholes in the hull to port and starboard and the single side window of the helm station. At least since 1954, the hull length is specified with 7.00 meters and the width with 2.00 meters. From the autumn of 1955, the length is 7.10 meters with a constant width of 2.00 meters. At the end of 1958, another version for double-engine and with comfortable cabin and toilet is offered parallel to the existing version. The hulls of these ships were 7.35 meters long and 2.46 meters wide. The dimensions of the hull are very similar to the dimensions of Svanö. These ships stand out due to slightly changed proportions. The production was probably intended among other things for the American market and took place in 1958/1959. At the end of production, the length of the classic model grew again from 7.10 meters to 7.25 meters in length and 2.25 meters in width. These dimensions have been valid from 1960 to 1964.

Miscellaneous
Solö Ruff: image 1 of 1 thumb
Solö Ruff - type plate AB Telfa
"Solö Ruff" was the name under which the boat was sold in Sweden. At that time "Storebro Royal Cruiser" was not yet in sight as a global brand name. In the English-speaking world the boat was called "Sea Chaser" or "Sea Chaser I". On the German market the boat was sold as "Örn Kajütboot" (1953), as "Adler-Vorderkajütkreuzer" (1960) and as "Adler Boot-Typ Solö". A Spanish language brochure identifies the boat as "Gaceta II". No wonder that the shipyard was looking for a uniform name for the marketing.

Some of the boats were also sold by partners. A big partner was AB Telfa from Gothenburg. This company marketed the boats worldwide. For this the boats got their own type plates from AB Telfa and their own serial numbers. The serial numbers on the type plates of AB Telfa are for Solö Ruff in the range from 1500 upwards.

Solö Ruff: image 1 of 1 thumb
Solö Ruff kit
Örnmaskiner also offered the Solö Ruff 1962/1963 as a kit for customers who were skilled craftsmen. The customer got a completely prefabricated hull as well as all wooden parts needed for the superstructure and the cockpit. The wooden parts were delivered cut to size. The necessary support of the self-building customers demanded a lot from Tage Truedsson. Often delivered wooden parts were sawn up because they were thought to be a different part. According to the delivery lists, a total of twelve boats were delivered in kit form.

A very famous customer and owner of a Solö Ruff was the Swedish writer Astrid Lindgren.
After grounding and repair she wrote these thankful words:

7.7.1964
ASTRID LINDGREN
To
AB Örnmaskiner, the kindest, I have to ask to express my
heartfelt thanks for the nice Solö-baot that now
lies at my bridge here in Furusund. A small piece of Småland,
and what a nice bit late! My children sit and look at it with
sparkling eyes, not to talk about my grandchildren! On its maiden voyage
the boat had the great misfortune to fall into the hands of a
driver who "knows the fairways" and who was - with 30
years of experience in motorboats - so much qualified so
that he put the boat aground after five minutes. Results:
Rudder damage, propeller damage, shaft damage and nearly ulcers
in me, because this happened just by midsummer and it was
the world's loveliest weather. But now the boat is like new again
and everyone is happy. Thank you thank you!
With cordial greeting
Your
Astrid Lindgren


Various names of the various solo ruff variants circulate on the Internet. Sometimes the boats are called Solö Ruff 1-4. However, this distinction was not made by the shipyard. Nevertheless, there are visual differences with which the ships can be assigned to specific periods.
The table below is based on existing data and does not claim to be complete or correct (additional information or suggestions for correction are welcome).

Silhouette
Year
Info
Solo Ruff: image 1 of 4 thumb
1952-1953
Original design from 1952. Characteristic features are the two round portholes and the single down angled side window of the cockpit. The dimensions of the boat are given as 6.85 m x 2.00 m.
Solo Ruff: image 1 of 4 thumb
1953/1954
Design around 1953/1954. New are now the three oval portholes. The side window of the cockpit is still one-piece, but runs horizontally.
  • The length of the boat is now 7.0 m and it is 2.0 m wide.
Solo Ruff: image 1 of 4 thumb
1954 - 1960
Design from probably mid-1954th Besides the well-known three portholes, the ship is now provided with the well-known two-part side window. This design was retained in its basic appearance until the end of the production period.
  • 1955 the length of the boat grows to 7.1 m and it is still 2.0 m wide.
Solo Ruff: image 1 of 4 thumb
1960 - 1964
The well-known design is preserved. The length grows to 7.25 m. This design was retained in its basic appearance until the end of the construction period.
  • Since 1960 the standard version of the Solö Ruff has been 7.25 m long and 2.25 m wide.
  • The driving position changes from the starboard to the port side.
Solo Ruff: image 1 of 4 thumb
1958/1959
1958/1959, a version of the Solö Ruff is built for double engine and with more cabin comfort (e.g., with toilet). One would think that the hull of the Svanö had been used. Unlike the standard models, the boats known up to now have a two-part windscreen instead of the three-part windscreen.
  • This boat is 7.35 meters long and 2.46 meters wide.


2020-12-17 2023-09-03

Photos and images

Solö Ruff 1952-1953
Solö Ruff: image 1 of 10 thumb Solö Ruff: image 1 of 10 thumb Solö Ruff: image 1 of 10 thumb Solö Ruff: image 1 of 10 thumb Solö Ruff: image 1 of 1 thumb Solö Ruff: image 1 of 1 thumb Solö Ruff: image 1 of 10 thumb
Solö Ruff 1954
Solö Ruff: image 1 of 10 thumb
Solö Ruff 1954-1964
Solö Ruff: image 1 of 10 thumb Solö Ruff: image 3 of 11 thumb Solö Ruff: image 4 of 11 thumb Solö Ruff: image 1 of 10 thumb Solö Ruff: image 5 of 11 thumb
Solö Ruff with double engines
Solö Ruff: image 1 of 10 thumb Solö Ruff: image 1 of 10 thumb Solö Ruff: image 1 of 10 thumb Solö Ruff: image 1 of 10 thumb Solö Ruff: image 1 of 10 thumb
Images of the production in Storebro
Solö Ruff: image 1 of 10 thumb Solö Ruff: image 1 of 10 thumb Solö Ruff: image 1 of 1 thumb Solö Ruff: image 1 of 10 thumb Solö Ruff: image 1 of 10 thumb Solö Ruff: image 1 of 10 thumb Solö Ruff: image 1 of 10 thumb Solö Ruff: image 1 of 10 thumb Solö Ruff: image 1 of 1 thumb Solö Ruff: image 1 of 1 thumb Solö Ruff: image 1 of 1 thumb Solö Ruff: image 1 of 10 thumb Solö Ruff: image 1 of 10 thumb Solö Ruff: image 1 of 10 thumb Solö Ruff: image 1 of 10 thumb
Storö I: image 2 of 3 thumb
In some cases, further images of registered ships are available for registered users.
Unless otherwise stated, the images used on this page are subject to copyright. Commercial use without written consent is not permitted. The only exceptions to this copyright are the images provided by the owners of their ships. In this case, the copyright belongs to the respective owners.

Engines

EnginesAlbin
O-411
Volvo Penta
BB50
Volvo Penta
BB41/BB43
Volvo Penta
MD4
Volvo Penta
MB36A
Volvo Penta
BB25
Volvo Penta
BB70
Volvo Penta
MB18F
Volvo Penta
BB100A
Production1950-19561951-19571954-19641956-19641957-19631958-19621963-19681963-1969 *
FuelPetrol/GasolinePetrol/GasolinePetrol/GasolineDieselParaffin/KerosenePetrol/GasolinePetrol/GasolineParaffin/KerosenePetrol/Gasoline
Stroke444444444
No. of cylinders444484444
Bore[mm]78.0075.0075.0075.0084.1479.3779.3784.1484.14
Stroke[mm]9280801008080808080
Compression ratio5.6:17.7:16.5:119.0:17.4:18.2:110.0:1
Displacement[l]1.761.421.421.776.561.581.601.781.78
Torque[Nm]
Engine output[kw/(HP)]31/(42)37/(50)29/(40)14 - 29/
(19 - 39)
53 - 74/
(72 - 100)
24/(32)37 - 63/
(50 - 85)
33 - 41/
(45 - 56)
46 - 74/
(63 - 100)
Rotations[1/min]2500350035001500-34001600-3200220040003000-45003000-5000
Weight[kg]205185260340180180 ****200
EnginesEngine output
[kw/(HP)]
Albin O-41131/(42)
Volvo Penta BB5037/(50)
Volvo Penta BB41/BB4329/(40)
Volvo Penta MD414 - 29/
(19 - 39)
Volvo Penta MB36A53 - 74/
(72 - 100)
Volvo Penta BB2524/(32)
Volvo Penta BB7037 - 63/
(50 - 85)
Volvo Penta MB18F33 - 41/
(45 - 56)
Volvo Penta BB100A46 - 74/
(63 - 100)
* All variants of this engine
**** Weight without gearbox

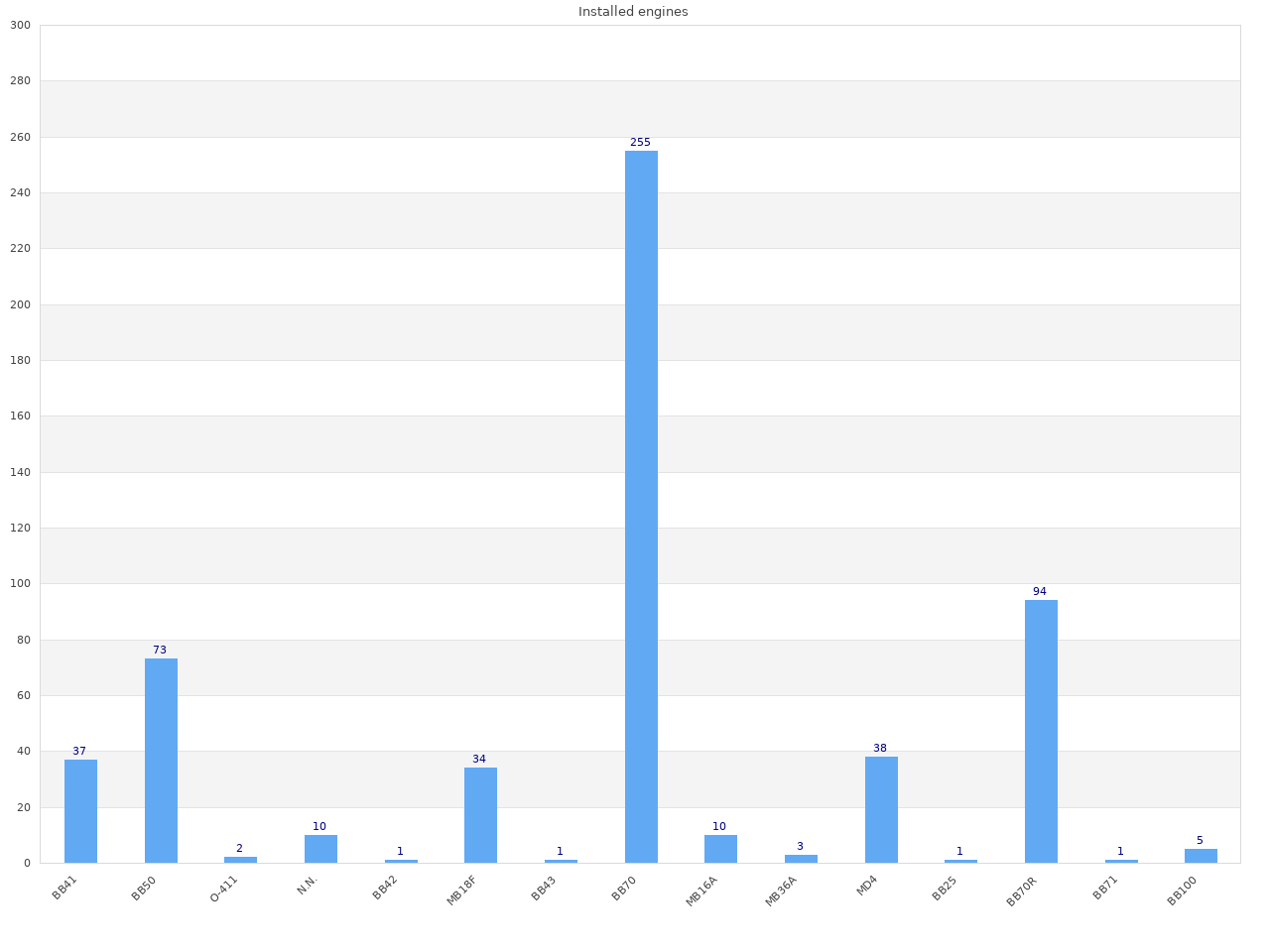

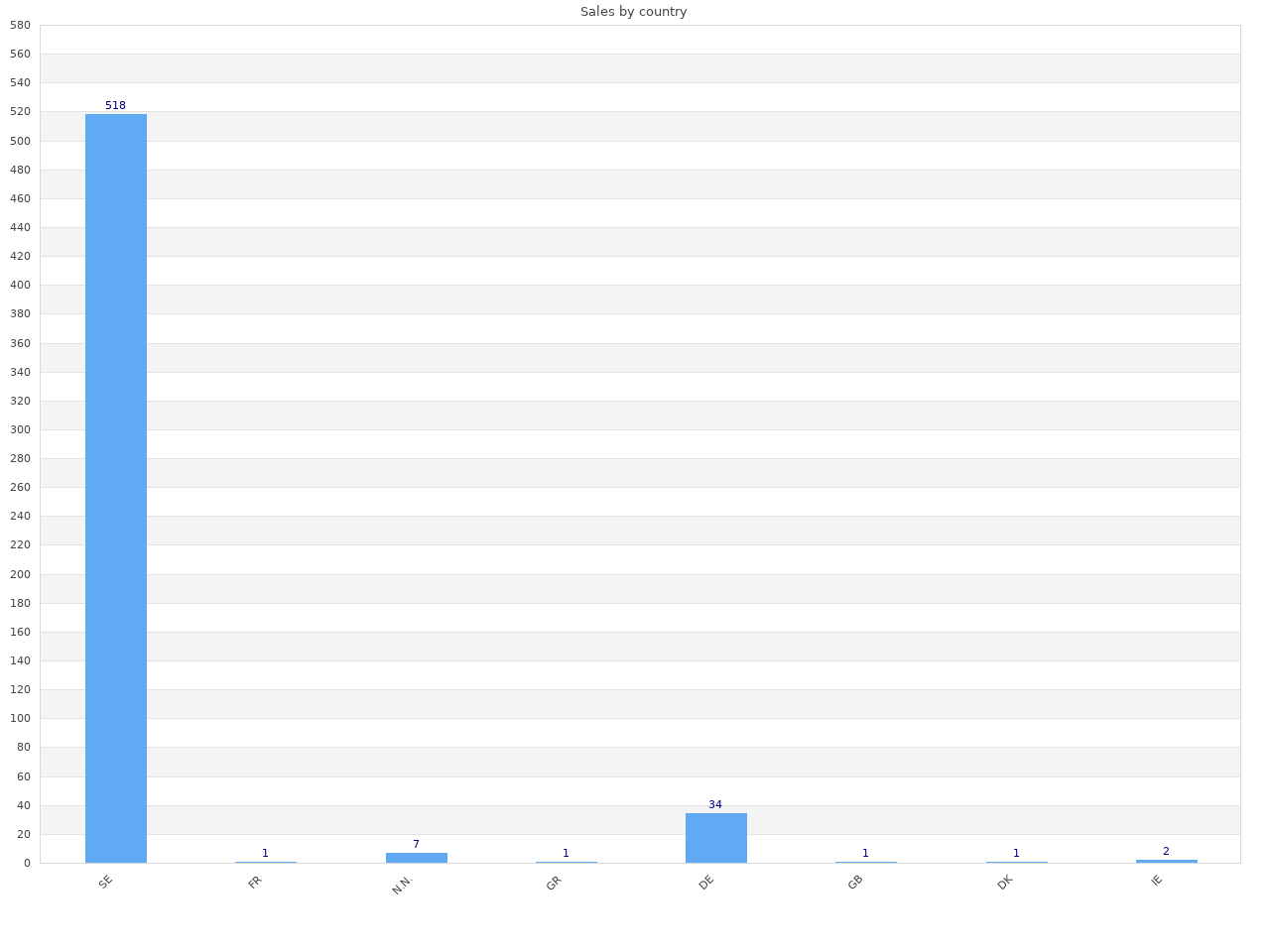

Statistics

soloruff: image 1 of 1 thumb
soloruff: image 1 of 1 thumb
As a registered user, you have access to further diagrams on hull colours, layout variants, type of wood used and production figures per year, depending on the type of boat.

Documents

Brochures, flyerLowHi
Örnmaskiner Solö Ruff - Brochure 1952seDownload only for registered users
Örnmaskiner Solö Ruff / Vindö - Brochure 1953seÖrnmaskiner Solö Ruff / VindöDownload only for registered users
Örnmaskiner Örn Kajütboot / Örn Kabriolettboot - Brochure 1953deÖrnmaskiner Örn Kajütboot / Örn KabriolettbootDownload only for registered users
Örnmaskiner Baltic 21 / Baltic 24 - Brochure 1953enDownload only for registered users
Örnmaskiner Gaceta I / Gaceta II - Brochure 1953spDownload only for registered users
Örnmaskiner Solö Ruff / Vindö - Flyer 1958seÖrnmaskiner Solö Ruff / VindöDownload only for registered users
Örnmaskiner Solö Ruff / Vindö - Flyer 1958deDownload only for registered users
Örnmaskiner Solö Ruff - Kit - Flyer 1962seÖrnmaskiner Solö Ruff - KitDownload only for registered users
PricelistsLowHi
AB Örnmaskiner - Pricelist 1954sePDF - Download only for registered users
AB Örnmaskiner - No. 15B - Pricelist 1955sePDF - Download only for registered users
AB Örnmaskiner - No. 15O - Pricelist 1955sePDF - Download only for registered users
AB Örnmaskiner - No. 16 - Pricelist 1956sePDF - Download only for registered users
AB Örnmaskiner - No. 19 - Pricelist 1957sePDF - Download only for registered users
AB Örnmaskiner - No. 20B - Pricelist 1958sePDF - Download only for registered users
AB Örnmaskiner - No. 21B - Pricelist 1960sePDF - Download only for registered users
AB Örnmaskiner - No. 22B - Pricelist 1961sePDF - Download only for registered users
AB Örnmaskiner - No. 24B - Pricelist 1962enPDF - Download only for registered users
AB Örnmaskiner - No. 26B - Pricelist 1964sePDF - Download only for registered users
Complete brochuresLowHi
AB Örnmaskiner - Complete brochure 1964enPDF - Download only for registered users
AB Örnmaskiner - Complete brochure 1964dePDF - Download only for registered users
Storebro - Technical documentsLowHi
Solö Ruff 7.15 x 2.00 - Outboard Profile and Arrangement133E1954seNot available for public download
Solö Ruff 7.25 x 2.20 - Outboard Profile and Arrangement152B1960seNot available for public download
Solö Ruff 7.25 x 2.20 - Profiles152C1960seNot available for public download
Technical brochures - ManualsLowHi
Albin 0-11, 0-21, 0-41 and 0-411 - ManualenDownload only for registered owners
Albin 0-11, 0-21, 0-41 and 0-411 - ManualseDownload only for registered owners
Albin AL-23, 0-41 and 0-411 reverse gear - ManualenDownload only for registered owners
Penta BB41/BB43 - ManualseDownload only for registered owners
Volvo Penta BB100/MB18F/BB30B/BB30F - ManualseDownload only for registered owners
Volvo Penta MD4 - ManualseDownload only for registered owners
Technical brochuresLowHi
Volvo Penta - Program 1954en
Volvo Penta - Program 1959se
Volvo Penta - Program 1960se
Volvo Penta - Program 1964de
Volvo Penta BB50 - Productflyeren
Volvo Penta BB70 - Productflyeren
Volvo Penta MB36A - Productflyeren
Volvo Penta MD 4 - Productflyeren
Multimedia documentsLowHi
Seachaser I2021Download only for registered users
Newspaper articlesLowHi
Three swedish motorboats (Yacht 1958/i. 12/ p. 355)1958
Dagens PS - Solö Ruff - timeless Swedish classic with style2021Download only for registered users
Båtens Verden No. 6 20242024Download only for registered users
