Royal Cruiser I

Royal Cruiser I Special

Technical Data
Production period	1959-1964 1960 - Royal Cruiser I with aft cabin
L.o.a. [m]	8.55 / 9.15
Beam [m]	2.79
Draft [m]	0.70
Displacement [t]	2.90
Fuel [l]	2 x 200
Water [l]	125
Voltage [V]	12
Hull	Mahogany

Number of boats	ca. 170 - Storö I 2 - Storö I AK

Designer	Otto Scheen jun.

Quick links

	Remarks
	Photos and images
	Engines

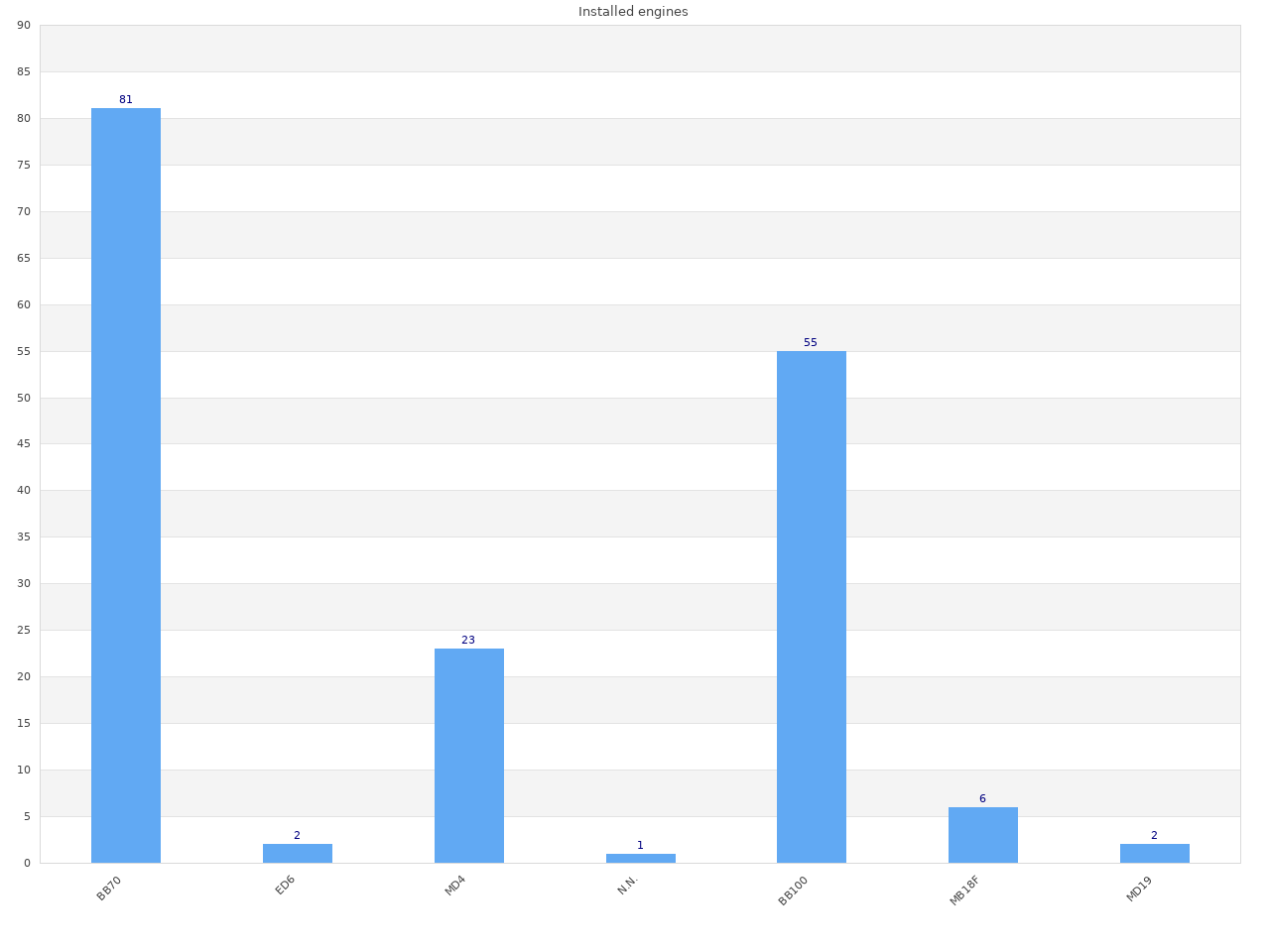

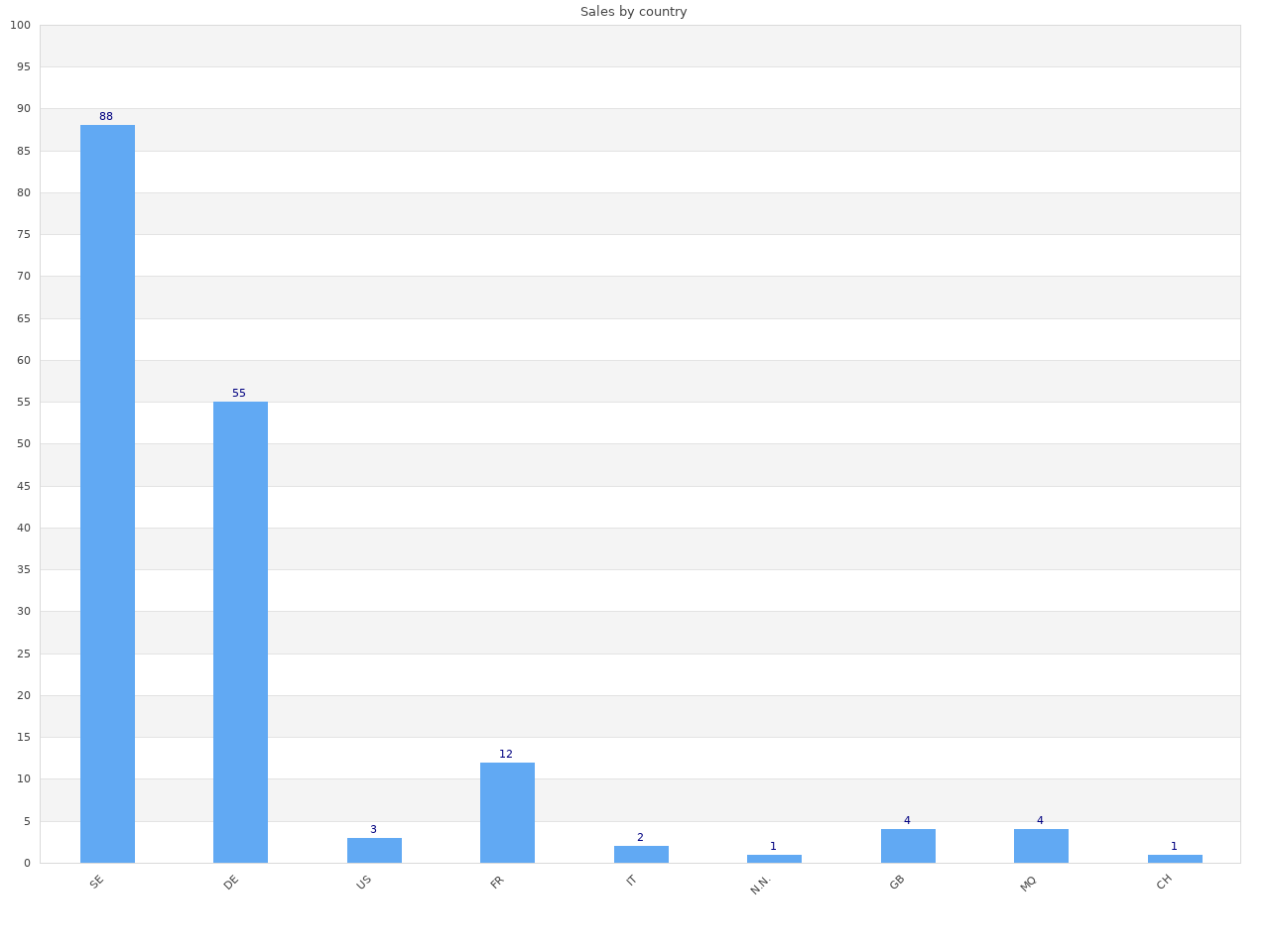

	Statistics
	Technical development
	Brochures, flyer
	Manufacturing number list (170)

Remarks

The Storö I was a natural continuation of the Solö series and the basis for a number of pleasure boats with the classic name Storö. She was a very sturdy boat whose seaworthiness was proved by Tore Comstedt by winning the "Pavillon d'Or" with a Storö I in 1964.
Unlike the previous Solö boats she was not designed by Einar Runius but by Otto Scheen jun..

On special request two boats with aft cabin were built in 1960. While the Swedish-language catalog does not show any difference between the two versions, the English-language catalog mentions a Royal-I and Royal II (with aft cabin) which, however, is not to be confused with the Storö II. The Royal II is indicated with a hull length of 30 feet (at the same width like the Royal I), which is two feet more than the Royal I without aft cabin.

Modifications
At least the prototype had a one-piece cabin windscreen and side windows at the helm. Later, the boat got a split windscreen and the windows at the helm were replaced by a wooden panel.

2016-10-20 2020-02-27

Photos and images

Royal Cruiser I

Layout

Royal Cruiser I with aft cabin

Layout

Interior

Images of the production in Storebro

Private photos of a Storö I (Royal Cruiser I) at Hamburg, Germany

Testing the Storö I (Royal Cruiser I)

In some cases, further images of registered ships are available for registered users.

Unless otherwise stated, the images used on this page are subject to copyright. Commercial use without written consent is not permitted. The only exceptions to this copyright are the images provided by the owners of their ships. In this case, the copyright belongs to the respective owners.

Engines

Engines		Volvo Penta ED6	Volvo Penta MD4	Volvo Penta BB70	Volvo Penta MB18F	Volvo Penta BB100A	Volvo Penta MD19
Production		1951-1963	1954-1964	1958-1962	1963-1968	1963-1969 ^*	1964-1968
Fuel		Paraffin/Kerosene	Diesel	Petrol/Gasoline	Paraffin/Kerosene	Petrol/Gasoline	Diesel
Stroke		4	4	4	4	4	4
No. of cylinders		6	4	4	4	4	4
Bore	[mm]	84.14	75.00	79.37	84.14	84.14	88.00
Stroke	[mm]	110	100	80	80	80	80
Compression ratio		4.8:1	19.0:1	8.2:1		10.0:1	22.1:1
Displacement	[l]	3.67	1.77	1.60	1.78	1.78	1.95
Torque	[Nm]
Engine output	[kw/(HP)]	23 - 44/ (31 - 60)	14 - 29/ (19 - 39)	37 - 63/ (50 - 85)	33 - 41/ (45 - 56)	46 - 74/ (63 - 100)	34 - 50/ (46 - 68)
Rotations	[1/min]	1200-2500	1500-3400	4000	3000-4500	3000-5000	3000-4500
Weight	[kg]		260	180 ^****	200		260

Engines	Engine output [kw/(HP)]
Volvo Penta ED6	23 - 44/ (31 - 60)
Volvo Penta MD4	14 - 29/ (19 - 39)
Volvo Penta BB70	37 - 63/ (50 - 85)
Volvo Penta MB18F	33 - 41/ (45 - 56)
Volvo Penta BB100A	46 - 74/ (63 - 100)
Volvo Penta MD19	34 - 50/ (46 - 68)

^* All variants of this engine

^**** Weight without gearbox

Documents

Brochures, flyer		Low	Hi
Örnmaskiner Storö I - Brochure	1960
Örnmaskiner Storö I - Brochure	1960
Royal Cruiser III / I (Pavillon d’Or-boat) - Flyer	1965
Pricelists		Low	Hi
Gösta Berg - Royal Cruiser I - Pricelist	1959
AB Örnmaskiner - No. 21B - Pricelist	1960
AB Örnmaskiner - No. 22B - Pricelist	1961
AB Örnmaskiner - No. 24B - Pricelist	1962
AB Örnmaskiner - No. 26B - Pricelist	1964
Complete brochures		Low	Hi
AB Örnmaskiner - Complete brochure	1964
AB Örnmaskiner - Complete brochure	1964

Storebro - Technical documents			Low	Hi
Royal Cruiser I - Outboard Profile and Arrangement	B-001-0	1959
Royal Cruiser I - Keel plan and mid-section cut	B-002-A	1959
Royal Cruiser I - Line drawing	B-001-B	1959
Technical brochures - Manuals			Low	Hi
Volvo Penta BB100/MB18F/BB30B/BB30F - Manual
Volvo Penta MD4 - Manual
Technical brochures			Low	Hi
Volvo Penta - Program 1959
Volvo Penta - Program 1960
Volvo Penta - Program 1964
Volvo Penta BB70 - Productflyer
Volvo Penta ED6 - Productflyer
Volvo Penta ED6 - Productflyer
Volvo Penta MD 4 - Productflyer
Volvo Penta MD19 - Productflyer
