Storebro Royal Cruiser 430 Baltic


Specifikationer

Byggperiod1998-2000
L.ö.a. [m]13,13
Bredd [m]4,20
Djupgång [m]1,20
Höjd över vattenlinjen [m]4,77
3,79 - med sänkt radarbåge
Deplacement [t]12,0
Bränsle [l]2 x 780
Vatten [l]2 x 300
Septic tank [l]208
Spänning [V]24
SkrovPlast
Antal byggda båtar18
DesignerJ. Björklund (Skrov)
Winfried H. Wilke (Design)

Snabblänkar

linkKommentarer
linkFoton och bilder
linkMotorer
linkStatistik
linkTeknisk utveckling
linkBroschyrer, flygblad
linkTillverkningsnummerlista (18)

Kommentarer

The Storebro Royal Cruiser 430 Baltic was the facelifted version of the successful SRC 420 Baltic.

Exterior
Analogous to the SRC 430 Biscay which was presented in 1997 the bathing-platform was slightly stretched and the vent covers for the engine room were integrated into the hull. Furthermore, the white aft panels at the railing were removed and replaced by a complete acrylic glazing. The above measures were already known by the SRC 420 Baltic MKII. The previously silver held side trim was replaced by a nearly black trim. This feature can also be found at the late versions of the SRC 380 Biscay and SRC 395 Biscay.
The rear windows of the aft cabin were treated very differently. Due to the problem that the staircase to the bathing platform now led directly in front of the window, the left window was omitted for some ships, and for others, both aft windows were omitted.
A list of changes compared to the SBC 420 Baltic can be found for the model year 1998 under Technical development.

Interior
Officially, the 430 Baltic was offered with the layout of 420 Baltic from the first years of production. In this layout, the pantry was standard U-shaped. Another change in the interior design concerned the design of the cabinet doors. From the third boat (s/n 3818) shutters were used instead of the cassette doors. This affected the guest cabin in the bow and the pantry. The bed in the owner's cabin graced a padded headboard already introduced in the SRC 420 Baltic MKII.
For the ships that were built at the start of production, the stocks in the old design and layout were still built in. Construction numbers 3816 and 3817 were delivered with an L-shaped pantry and cassette-style doors.

Engines
The Volvo Penta TAMD 73P-A with 413 hk was offered for the SRC 430 Baltic at the beginning of production in 1998. After the shipyard changed to other engine products from the middle of 1998, the Scania DSI9 47M with 450 hk was also offered for the SRC 430 Baltic. With the appearance of the successor, the Scania DI9 59M with 483 hk, this engine was offered as standard engine. Only a Finnish customer got his ship with the then new Volvo Penta TAMD 74P-A and 480 hk.

Miscellaneous
A special model was built for the then shipyard boss Anders Bejting (No. 3820). He got his ship with Scania DI12 engines. In this boat and the boat of then owner of the shipyard Hans Mellström the yard used computers with Windows(r)-NT-systems to display the engine-data on two screens (see Owner's Magazine 1999, p. 8). The system was designed by Anders Bejting and manufactured by DMP Holland. The name of the system was CAPS (Computer Assisted Piloting System). When Hans Mellström sold his boat, the buyer wanted to have the boat as original, so all extra electronic was removed and replaced by standard analogue instruments. The buyer also removed the green leather interior as he has learned that the colour green means bad luck to the boat. In addition the ship of Anders Bejting was provided with extensive leather interior, Recaro driver seat, a stretched bathing-platform, electric winches on the aft deck etc.

2020-01-12 2021-08-06

Foton och bilder

SRC 430: image 1 of 8 thumb SRC 430: image 2 of 8 thumb SRC 430: image 3 of 8 thumb SRC 430: image 4 of 8 thumb SRC 430: image 5 of 8 thumb SRC 430: image 6 of 8 thumb SRC 430: image 7 of 8 thumb SRC 430: image 8 of 8 thumb
Layout
SRC 430: image 6 of 8 thumb SRC 430: image 6 of 8 thumb
I vissa fall finns ytterligare bilder av registrerade fartyg tillgängliga för registrerade användare.
Om inget annat anges omfattas de bilder som används på denna sida av upphovsrätt. Kommersiell användning utan skriftligt medgivande är inte tillåten. De enda undantagen från denna upphovsrätt är de bilder som tillhandahålls av ägarna till deras båtar. I detta fall tillhör upphovsrätten respektive ägare.

Motorer

MotorScania
DSI9 47M
Volvo Penta
TAMD73P-A
Volvo Penta
TAMD74P-A
Scania
DI12 44M
Scania
DI9 59M
Produktion tid1996-19981997-19981998-2005 *1999-20031999-2003
BränsleDieselDieselDieselDieselDiesel
Stroke44444
Antal cylindrar66666
Diameter[mm]115.00104.77107.00127.00115.00
Slaglängd[mm]136130135154144
Kompression17.0:115.6:117.0:113.5:117.0:1
Cylindervolym[l]8.486.737.3011.709.00
Drivmoment[Nm]116120591474
Motoreffekt[kw/(hk)]331/(450)316/(430)353/(480)373 - 496/
(507 - 675)
355/(483)
Varvtal[1/min]22002600260023002300
Vikt[kg]1029860 ****1150 ****905 ****
MotorMotoreffekt
kw/(hk)]
Scania DSI9 47M331/(450)
Volvo Penta TAMD73P-A316/(430)
Volvo Penta TAMD74P-A353/(480)
Scania DI12 44M373 - 496/
(507 - 675)
Scania DI9 59M355/(483)
* Alla varianter av denna motor
**** Weight without gearbox
OBS:

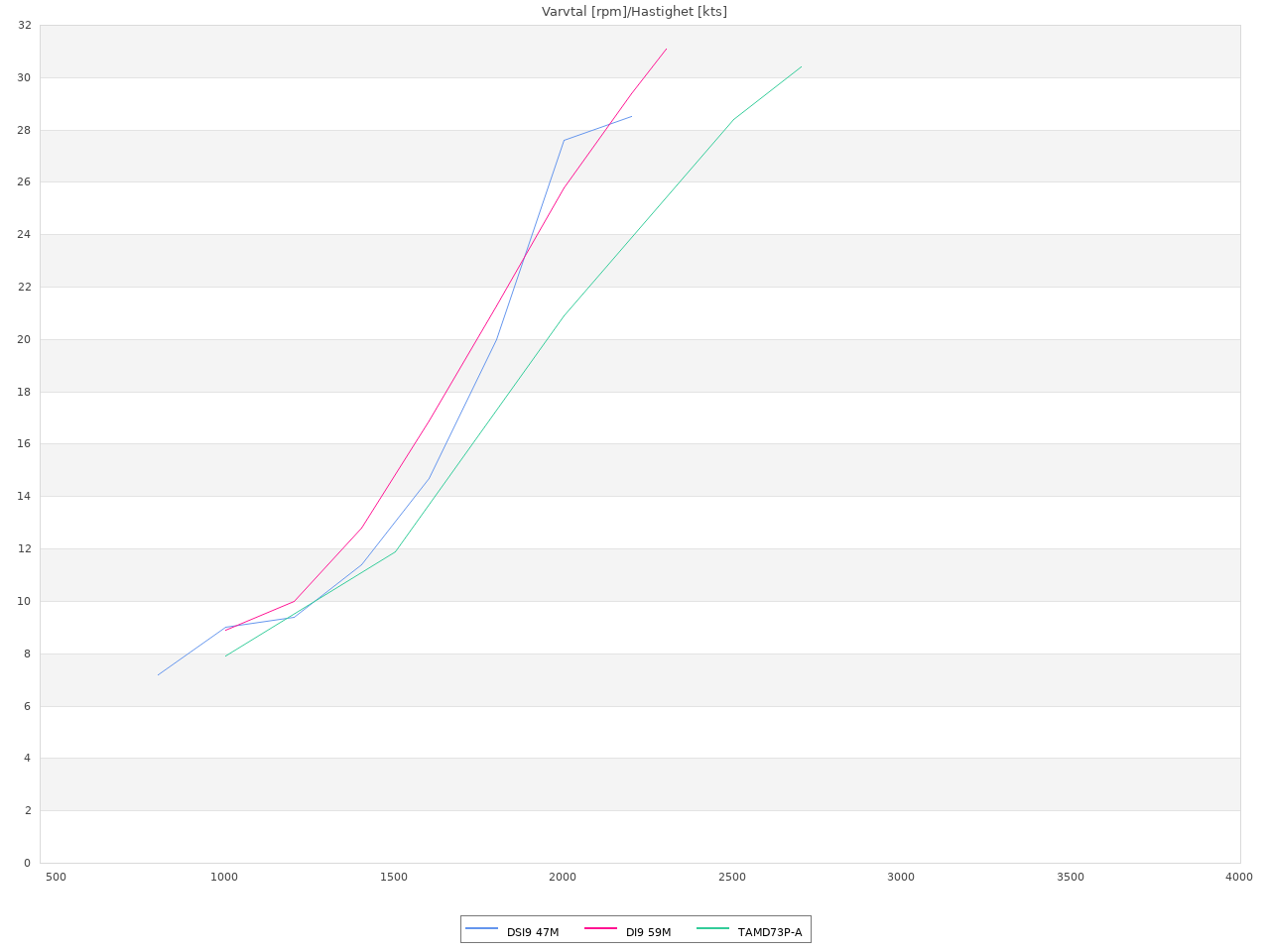

De värden som anges i motordiagrammen nedan är uppmätta värden för individuellt utrustade fartyg. De uppmätta värdena kan variera beroende på utrustning samt vind- och temperaturförhållanden. Dessa värden innebär ingen bindande egenskap utan kan endast tjäna som indikationer.
src430ba: image 1 of 1 thumb
Som registrerad användare har du, beroende på båttyp, tillgång till ytterligare diagram om förbrukning, räckvidd och ljudnivå.

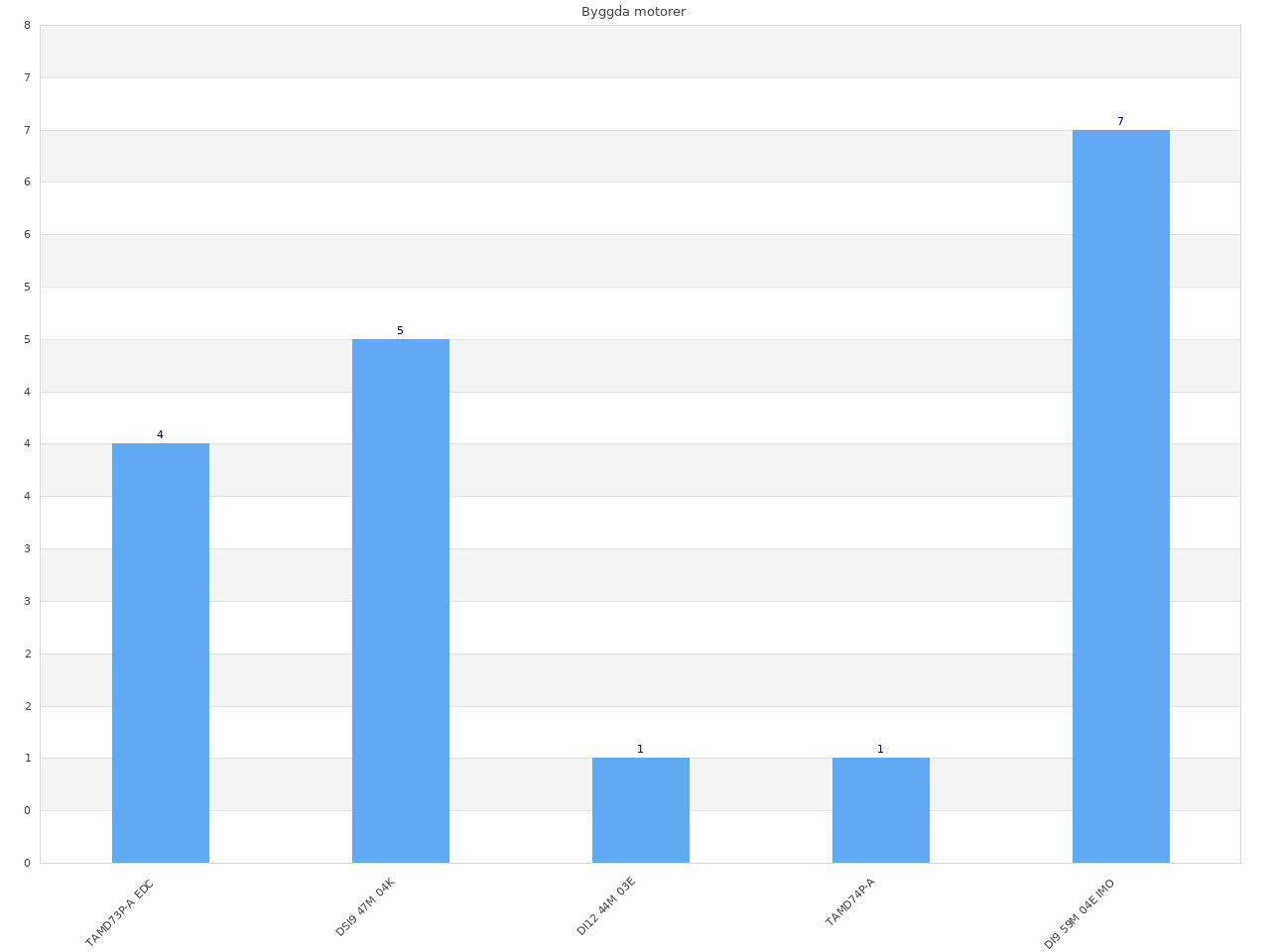

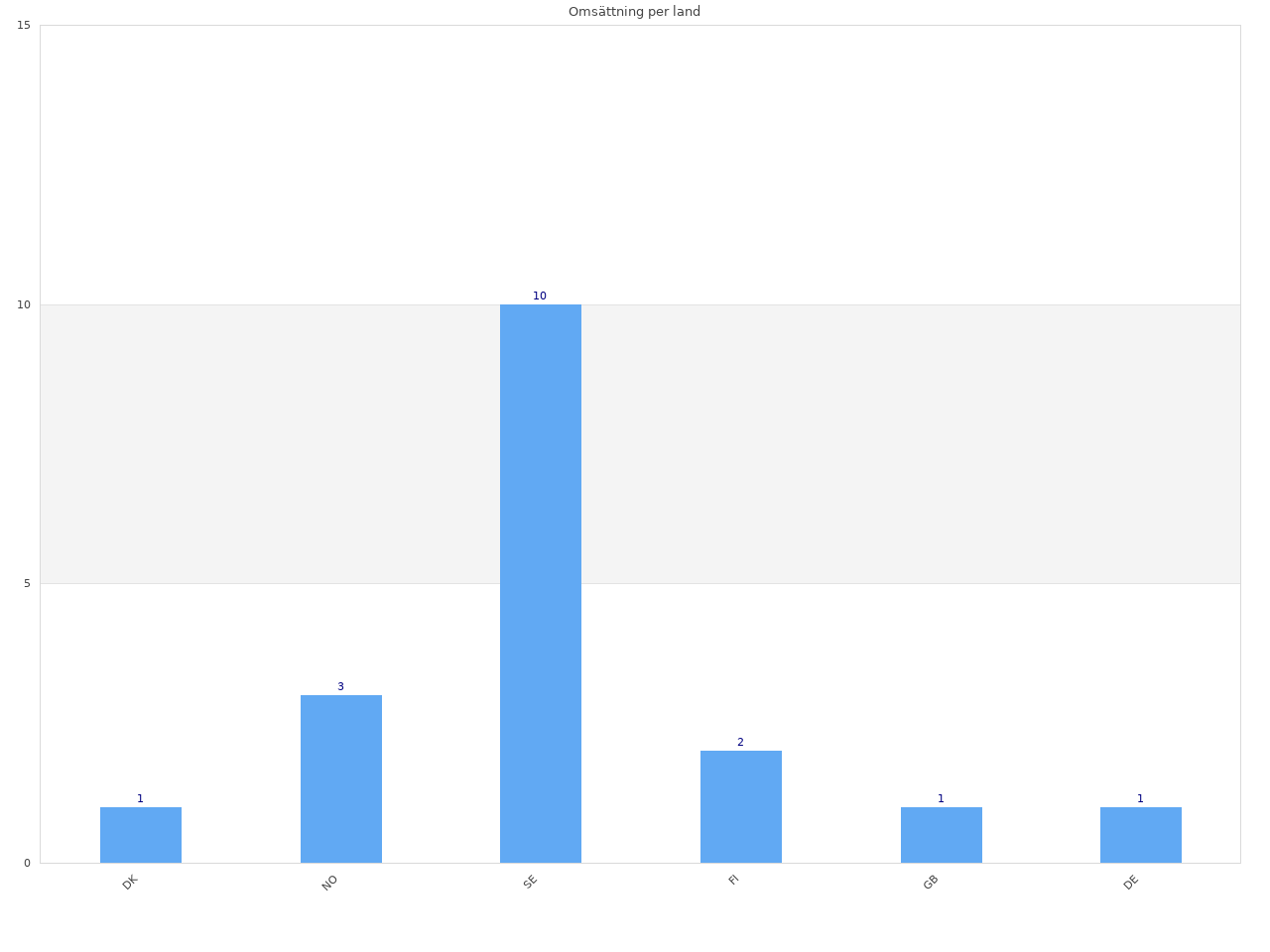

Statistik

src430ba: image 1 of 1 thumb
src430ba: image 1 of 1 thumb
Som registrerad användare har du tillgång till ytterligare diagram över skrovfärger, layoutvarianter, träslag och produktionssiffror per år, beroende på båttyp.

Teknisk utveckling

Som registrerad användare har du tillgång till listan över ändringar i produktionen, beroende på båttyp.

Dokument

Brochures, flyerLowHi
Storebro Royal Cruiser 430 Baltic - Broschyr 1998enStorebro Royal Cruiser 430 BalticDownload only for registered users
Storebro Royal Cruiser 430 Baltic - Broschyr 1999deStorebro Royal Cruiser 430 BalticDownload only for registered users
Storebro Royal Cruiser 430 Baltic - Broschyr 1999enStorebro Royal Cruiser 430 BalticDownload only for registered users
Storebro Royal Cruiser 430 Baltic - Broschyr 1999frStorebro Royal Cruiser 430 Baltic
Storebro Royal Cruiser 430 Baltic - Broschyr 1999seStorebro Royal Cruiser 430 BalticDownload only for registered users
Övergripande BroschyrerLowHi
Storebro Royal Cruiser - Övergripande Broschyr1998enPDF - Download only for registered users
Storebro Royal Cruiser - Övergripande Broschyr1999enPDF - Download only for registered users
Storebro Royal Cruiser - Övergripande Broschyr1999sePDF - Download only for registered users
Storebro Royal Cruiser - Övergripande Broschyr2000se
Storebro Royal Cruiser - Övergripande Broschyr2001enPDF - Download only for registered users
InstruktionsböckerLowHi
SRC 430 Baltic (SN 3837) - Instruktionsbok2000sedDownload only for registered owners
Storebro - Tekniska dokumentLowHi
SRC 420 - Bränsletank - teknisk ritning2-5907-00261993seDownload only for registered users
SRC 420 - Bränsletank - teknisk ritning2-5907-00331995seDownload only for registered users
SRC 420/430 - Dykrör bränsletank3-5907-00481997seNot available for public download
SRC 430 Baltic -12/24V Kopplingsschema (>S/N 3817)m8j020051997enNot available for public download
SRC 430 Baltic - Inkoppling Elcentral (från S/N 3817)mni444021997seNot available for public download
SRC 430 Baltic - TAMD 73 Eng. Wiring Diagram (>S/N 3817)m8j348001997enNot available for public download
SRC 430 Baltic - Inkoppling Elcentral (från S/N 3824)mni444031998seNot available for public download
SRC 430 Baltic - Elskema o. GenSet 230Vm8j371001998enNot available for public download
SRC 430 Baltic - Transportunderlag1998enDownload only for registered users
SRC 430 Baltic - 12/24V Kopplingsschema (>S/N 3838)m8j020081999enNot available for public download
Storebro - Test ReportsLowHi
SRC 430 Baltic (S/N 3820) - Test Report Scania DSI 91998enDownload only for registered users
SRC 430 Baltic (S/N 3838) - Test Report Scania DI 92000enDownload only for registered users
Tekniska Broschyrer - HandbokLowHi
Scania DI12 44M - BruksanvisningenDownload only for registered owners
Scania DI9 59M - BruksanvisningdeDownload only for registered owners
Scania DI9 59M - BruksanvisningenDownload only for registered owners
Twin Disc Marine Transmission MG-5085A Service ManualenNot available for public download
Tekniska BroschyrerLowHi
CAPS (Computer Assisted Piloting System)se
Scania DI9/DI12/DI14 - Specifikationeren
Volvo Penta TAMD 74P - Produktbroschyren
Multimedia DokumentLowHi
Storebro Royal Cruiser 430 Baltic - VideoDownload only for registered users
