Specifikationer | |
Byggperiod | 1982-1985 1986-1988 - stor Flybridge |
L.ö.a. [m] | 11,00 |
Bredd [m] | 3,83 |
Djupgång [m] | 1,10 |
Deplacement [t] | 9,0 |
Bränsle [l] | 2 x 660 |
Vatten [l] | 400 |
Spänning [V] | 24 |
Skrov | Plast |
Antal byggda båtar | 74 |
Designer | Winfried H. Wilke |

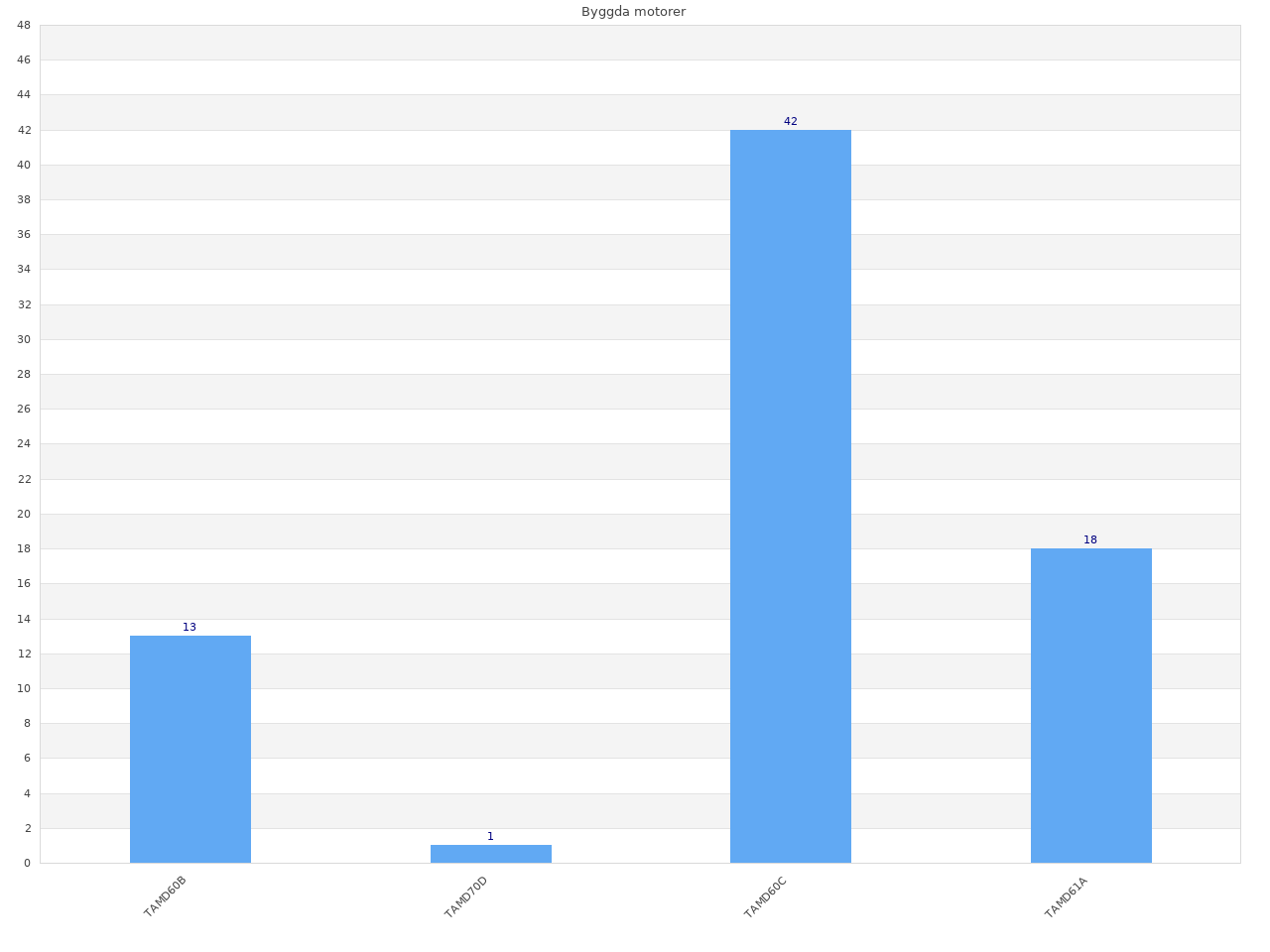

Motor | Volvo Penta TAMD60B | Volvo Penta TAMD70D | Volvo Penta TAMD60C | Volvo Penta TAMD61A | |
Produktion tid | 1978-1983 | 1978-1983 | 1983-1987 | 1986-1995 | |
Bränsle | Diesel | Diesel | Diesel | Diesel | |
Stroke | 4 | 4 | 4 | 4 | |
Antal cylindrar | 6 | 6 | 6 | 6 | |
Diameter | [mm] | 98.43 | 104.77 | 98.43 | 98.43 |
Slaglängd | [mm] | 120 | 130 | 120 | 120 |
Kompression | 16.0:1 | 14.5:1 | 16.0:1 | 15.0:1 | |
Cylindervolym | [l] | 5.48 | 6.73 | 5.48 | 5.48 |
Drivmoment | [Nm] | 625 | |||
Motoreffekt | [kw/(hk)] | 103 - 169/ (140 - 230) | 130 - 206/ (177 - 280) | 112 - 184/ (152 - 250) | 218/(296) *** |

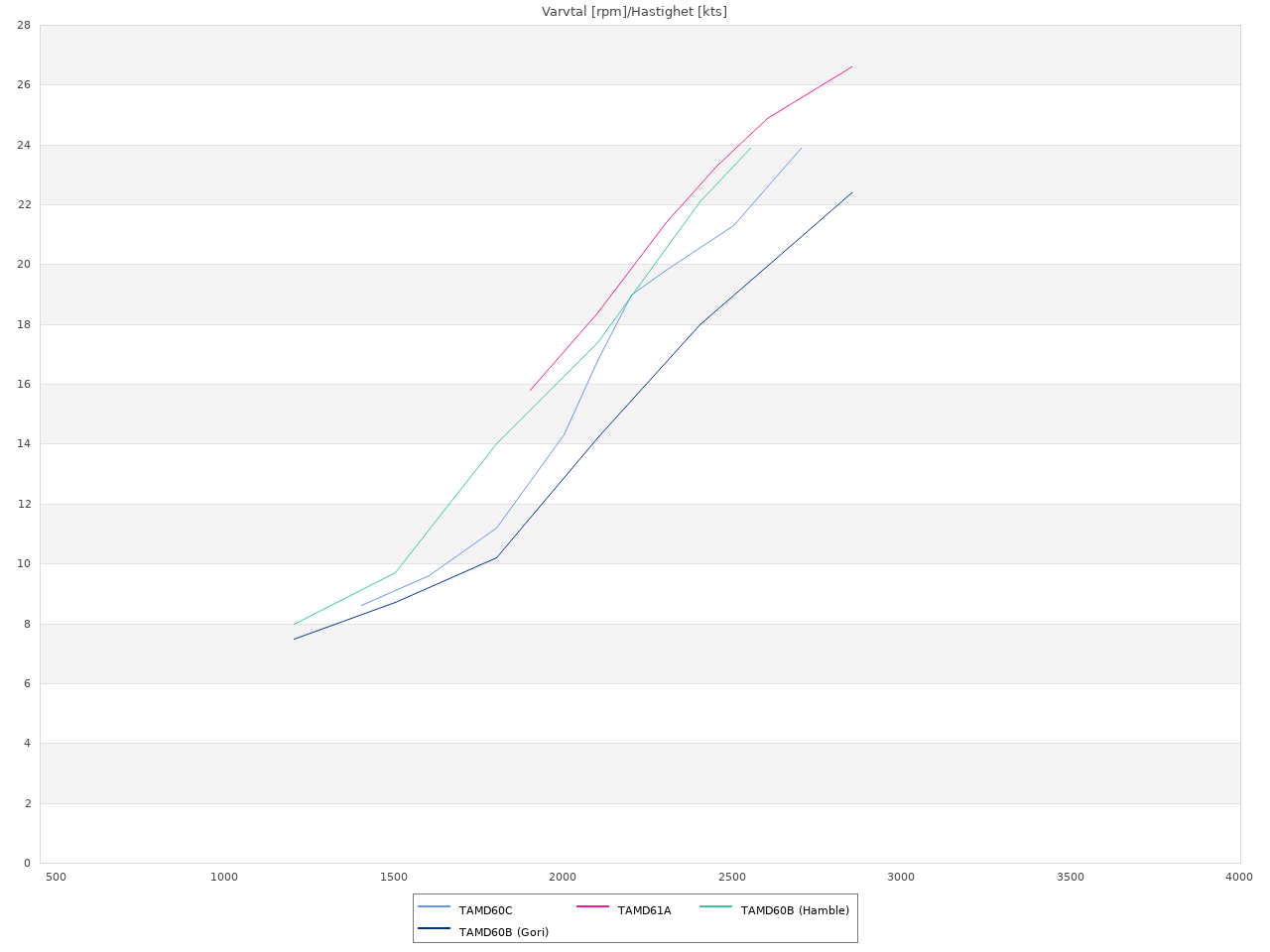

Varvtal | [1/min] | 1800-2800 | 1800-2500 | 1600-2800 | 2800 |
Vikt | [kg] | 750 | 920 | 680 **** | 829 |
*** Effekt vid propelleraxeln |
**** Weight without gearbox |
|
