Storö III


Specifikationer

Byggperiod1965-1968
L.ö.a. [m]9,06
Bredd [m]3,11
Djupgång [m]0,75
Höjd över vattenlinjen [m]3,10
Deplacement [t]3,5
Bränsle [l]2 x 200 (-1967)
2 x 300 (1967-)
Vatten [l]125
Spänning [V]12
SkrovMahogny
Antal byggda båtarca. 140
DesignerOtto Scheen jun. (Skrov)
Winfried H. Wilke (Design)

Snabblänkar

linkKommentarer
linkFoton och bilder
linkMotorer
linkStatistik
linkBroschyrer, flygblad
linkTillverkningsnummerlista (138)

Kommentarer

Seaworthiness and good handling characteristics marked the Storö III. Tore Comstedt won the hard "Pavillon d’Or" again in 1965, this time with a Storö III.

The Storö III was the direct successor of the Storö II. The hull of both ships was identical and still drawn by Otto Scheen jr. In contrast to the Storö II, however, the design of the superstructure was designed by Winfried H. Wilke.
While the first boats had the helm on the starboard side, this was changed during production. All Storebro boats which were built later had the helm on the port side. This can be seen in brochures from 1965 and 1967. The change coincides approximately with the change of road traffic in Sweden in 1967.

Late versions received the larger white air intake on the side, which was also fitted to the Storö IV/34, instead of the smaller metal one.

As with almost all Storebro boats up to that time, the steering position was not covered. Following the wishes of the owners, two options were added to the Storö III. In the simpler version, a roof was simply mounted on the windscreen. For this, the wood above the windows was raised slightly and the roof was supported at the rear with two metal struts. The second, more elaborate version also included laterally modified windows that closed the driver's cab to the roof at the side as well.

Others
A prominent owner of the Storö III was the French chanconier Charles Aznavour, who bought a Storö III in 1968. Unfortunately, his ship was driven from the anchorage to the rocky coast in a storm and severely damaged.

2022-08-20 2023-08-28

Foton och bilder

Storö III: image 1 of 2 thumb Storö III: image 2 of 2 thumb Storö III: image 2 of 2 thumb Storö III: image 2 of 2 thumb Storö III: image 2 of 2 thumb
Storö III: image 1 of 2 thumb
I vissa fall finns ytterligare bilder av registrerade fartyg tillgängliga för registrerade användare.
Om inget annat anges omfattas de bilder som används på denna sida av upphovsrätt. Kommersiell användning utan skriftligt medgivande är inte tillåten. De enda undantagen från denna upphovsrätt är de bilder som tillhandahålls av ägarna till deras båtar. I detta fall tillhör upphovsrätten respektive ägare.

Motorer

MotorVolvo Penta
MD27
Volvo Penta
MB18F
Volvo Penta
BB100A
Volvo Penta
MD19
Volvo Penta
BB165A
Volvo Penta
MD29
Produktion tid1963-19661963-19681963-1969 *1964-19681965-19691967-1970 *
BränsleDieselParaffinBensinDieselBensinDiesel
Stroke444444
Antal cylindrar644466
Diameter[mm]85.0084.1484.1488.0088.9088.00
Slaglängd[mm]808080808080
Kompression21.0:110.0:122.1:19.2:121.0:1
Cylindervolym[l]2.721.781.781.952.982.92
Drivmoment[Nm]
Motoreffekt[kw/(hk)]42 - 61/
(57 - 83)
33 - 41/
(45 - 56)
46 - 74/
(63 - 100)
34 - 50/
(46 - 68)
121/(165)49 - 68/
(67 - 92)
Varvtal[1/min]45003000-45003000-50003000-450050003000-4000
Vikt[kg]315200260315
MotorMotoreffekt
kw/(hk)]
Volvo Penta MD2742 - 61/
(57 - 83)
Volvo Penta MB18F33 - 41/
(45 - 56)
Volvo Penta BB100A46 - 74/
(63 - 100)
Volvo Penta MD1934 - 50/
(46 - 68)
Volvo Penta BB165A121/(165)
Volvo Penta MD2949 - 68/
(67 - 92)
* Alla varianter av denna motor

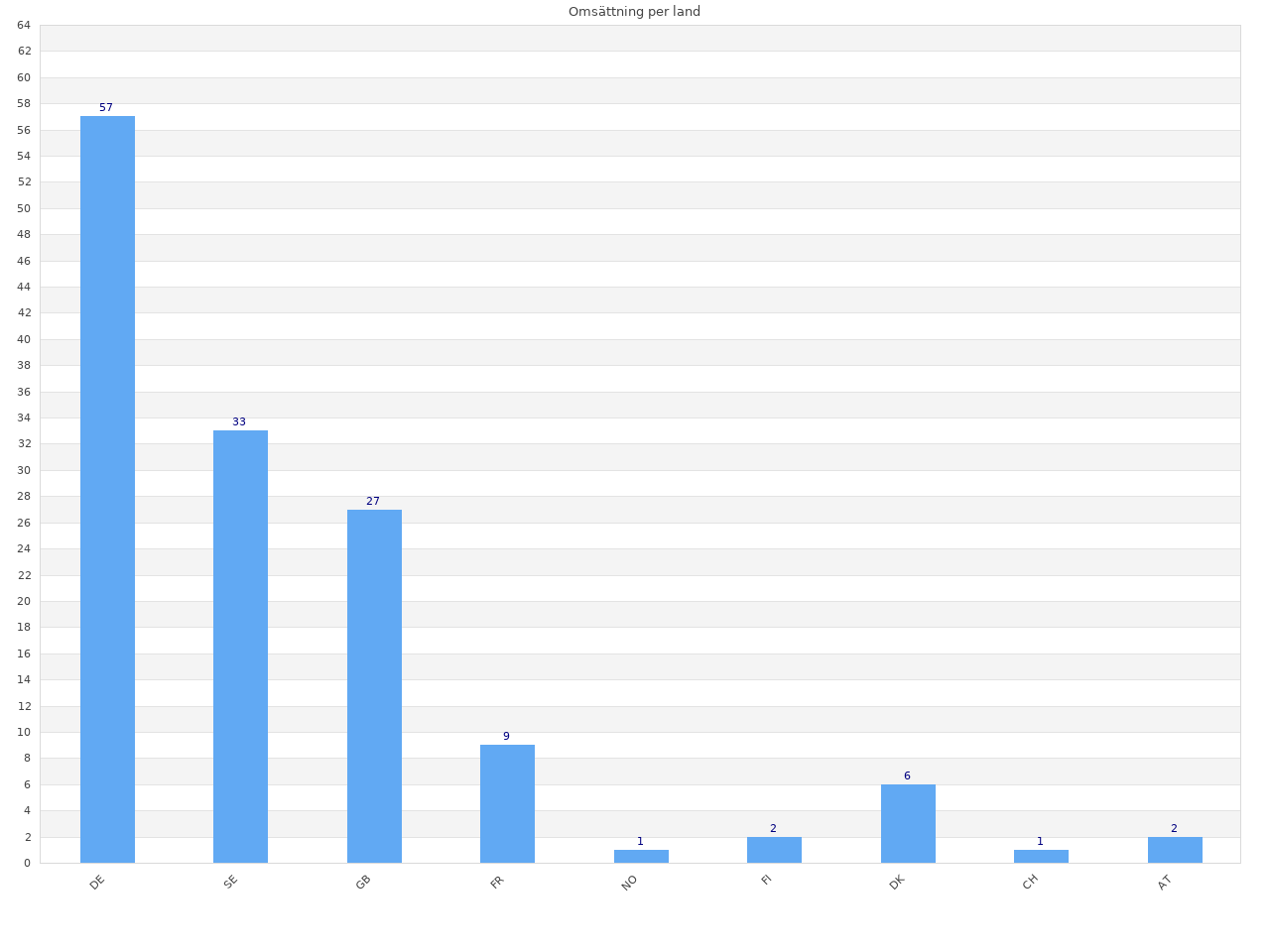

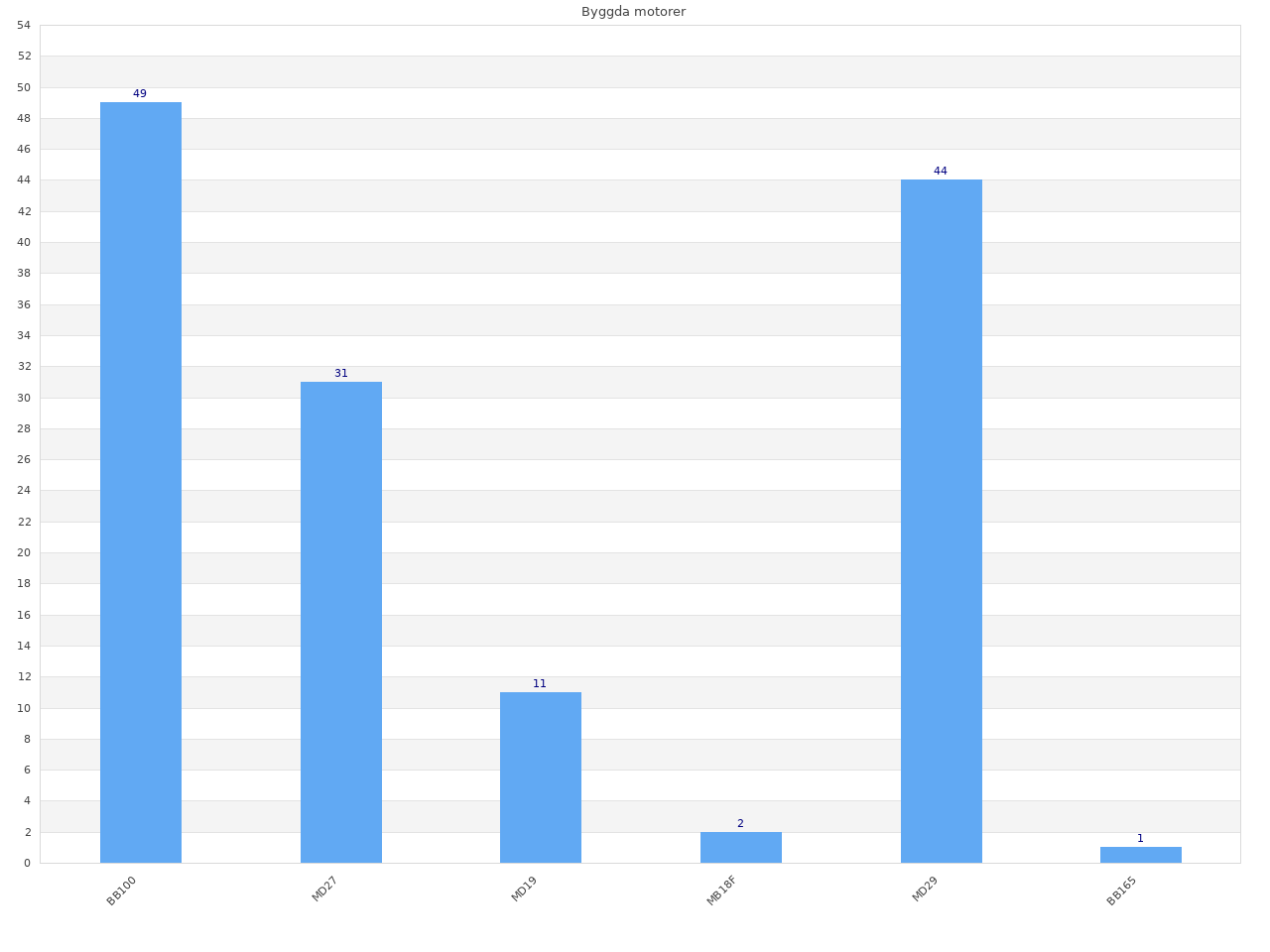

Statistik

storoiii: image 1 of 1 thumb
storoiii: image 1 of 1 thumb
Som registrerad användare har du tillgång till ytterligare diagram över skrovfärger, layoutvarianter, träslag och produktionssiffror per år, beroende på båttyp.

Dokument

Brochures, flyerLowHi
Storö III / Storö I (Pavillon d’Or-båt) - Flyer 1965nnStorö III / Storö I (Pavillon d’Or-båt)Download only for registered users
Storö III / Storö I (Pavillon d’Or-båt) - Flyer 1965deStorö III / Storö I (Pavillon d’Or-båt)
Storö III - Sührcke - Broschyr 1965deStorö III - Sührcke
Storö IV / Storö III - Broschyr 1967enStorö IV / Storö IIIDownload only for registered users
Storö IV / Storö III - Broschyr 1967seDownload only for registered users
Storö III - Broschyr 1967seStorö IIIDownload only for registered users
PrislistorLowHi
Storebro Bruks AB - Nr. 29B - Prislista 1965sePDF - Download only for registered users
Storebro Bruks AB - Nr. 30 - Prislista 1966sePDF - Download only for registered users
Storebro Bruks AB - Nr. 31 - Prislista 1967esPDF - Download only for registered users
Storebro Bruks AB - Nr. 32 - Prislista 1968sePDF - Download only for registered users
Övergripande BroschyrerLowHi
Storebro Bruks AB - Övergripande Broschyr1965sePDF - Download only for registered users
Storebro Bruks AB - Övergripande Broschyr1965enPDF - Download only for registered users
Tekniska Broschyrer - HandbokLowHi
Borg Warner Reduktionsbackslag Velvet Drive 70C/71C - InstruktionsbokenDownload only for registered owners
Volvo Penta AQD29/200 MD29 - InstruktionsbokseDownload only for registered owners
Volvo Penta BB100/MB18F/BB30B/BB30F - InstruktionsbokseDownload only for registered owners
Volvo Penta MD21A/MD32A - InstruktionsbokenDownload only for registered owners
Volvo Penta MD21A/MD32A - InstruktionsbokseDownload only for registered owners
Volvo Penta Reduktionsbackslag RB - InstruktionsbokseDownload only for registered ownersDownload only for registered owners
Tekniska BroschyrerLowHi
Volvo Penta BB165A - Produktbroschyren
Volvo Penta MD19 - Broschyren
Volvo Penta MD27 - Broschyren
Volvo Penta MD29 - Broschyren
Volvo Penta MD32A - Produktbroschyren
TidningsartiklarLowHi
Ny typ av Storebrobåtar genom Vimmerby1966Download only for registered users
Charles Aznavour köper Storebrobåt1968Download only for registered users
“Ulla” nära att kosta Aznavour livet1968Download only for registered users
